Optical Windows: Precision Substrates for Reliable Optical Performance

Optical windows are among the most important and widely used components in modern optical systems. Although their basic function appears simple, a high-quality optical window must protect sensitive internal components while allowing light to pass with minimal distortion, reflection, absorption, and scattering. In demanding applications, the window is not merely a transparent cover. It is a precision-engineered optical element that can influence image quality, laser transmission, system stability, environmental resistance, and service life.

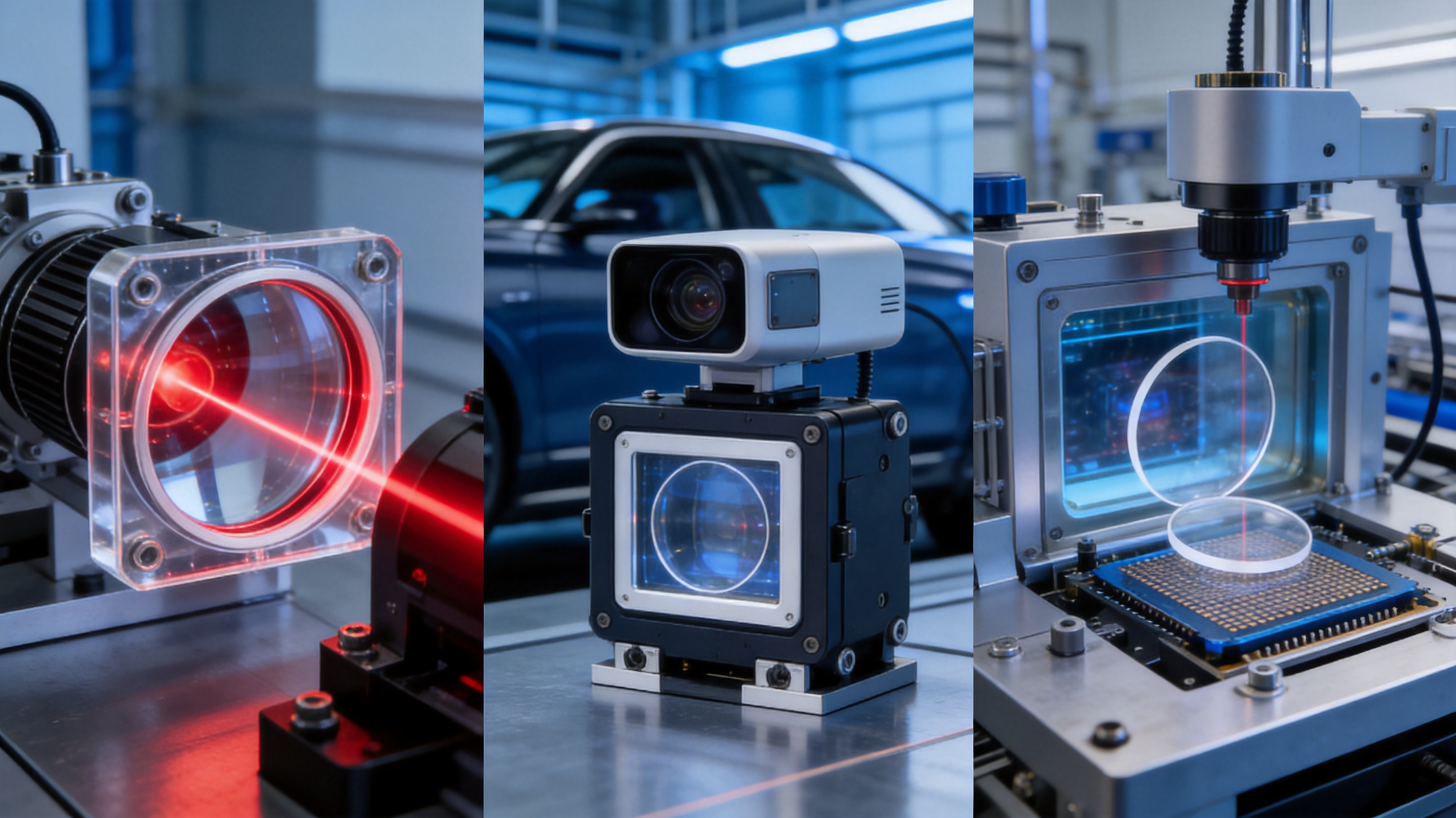

Optical windows are used in laser equipment, imaging instruments, semiconductor manufacturing systems, automotive optical modules, scientific devices, medical equipment, consumer electronics, and industrial inspection systems. Depending on the application, they may be required to withstand high temperature, rapid thermal changes, humidity, dust, vibration, pressure differences, chemical exposure, or repeated cleaning. Their surfaces may also need anti-reflection, high-reflection, infrared-transmission, ultraviolet-transmission, conductive, protective, or other specialized coatings.

The manufacturing of a dependable optical window therefore requires much more than cutting a piece of glass to size. It involves material selection, precision shaping, grinding, polishing, cleaning, coating, inspection, packaging, and quality control. Every stage can affect the final performance of the component. A small amount of wedge, surface irregularity, contamination, or coating nonuniformity may create unwanted beam deviation, ghost images, transmission loss, or measurement error.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd., commonly known as HLL, is a professional manufacturer of precision optical components with experience dating back to 1998. Located in Changzhou, Jiangsu, China, the company develops and produces optical components for laser optics, automotive optics, semiconductor optics, and consumer optics. Its optical window manufacturing capabilities are supported by an experienced technical team, established engineering technology centers, certified quality systems, and an integrated production environment.

This article explains the role of optical windows, the characteristics that determine their quality, the production processes used to manufacture them, and the reasons a specialized precision optics manufacturer can provide meaningful advantages over general glass-processing suppliers.

Optical Window

What Is an Optical Window?

An optical window is a flat or nearly flat transparent optical component designed to transmit light between two environments while protecting the optical or mechanical system behind it. A window normally has two polished surfaces, and its surfaces may be parallel or intentionally manufactured with a specified wedge angle. The component can be round, square, rectangular, polygonal, or customized according to the system design.

In a simple visual instrument, the window may protect a camera or sensor from dust and moisture. In a laser system, it may separate a sealed chamber from the external environment while transmitting a high-energy beam. In semiconductor equipment, it may serve as a clean, stable interface between process areas and optical inspection modules. In automotive applications, it may protect cameras, lidar receivers, displays, or other optical devices exposed to vibration, temperature changes, and contamination.

The optical window must be designed for the wavelength range, angle of incidence, environmental conditions, and mechanical structure of the application. A window for visible imaging may require excellent clarity and low reflection. A component for ultraviolet transmission may require a suitable ultraviolet-grade substrate and a coating system that resists solarization or degradation. A window used with infrared radiation may need a material and coating optimized for near-infrared, short-wave infrared, mid-wave infrared, or long-wave infrared transmission.

Optical windows can be supplied as uncoated substrates or as coated components. Uncoated windows are selected when the natural transmission of the substrate is sufficient, when the component will later receive a customer-specific coating, or when reflection is not a major concern. Coated windows are used when higher transmission, lower reflection, enhanced durability, or specialized spectral behavior is required.

Why Optical Window Quality Matters

The quality of an optical window affects more than the amount of light that passes through it. It can influence wavefront accuracy, image contrast, laser beam pointing, signal-to-noise ratio, sensor calibration, and equipment reliability. Because the window is often placed directly in the optical path, even small manufacturing deviations can become visible or measurable in the finished system.

Surface flatness is one of the most important parameters. A flat surface helps preserve the intended wavefront. If a surface has excessive irregularity, the transmitted beam may experience localized phase changes. In imaging equipment, this can reduce sharpness or introduce spatial distortion. In laser applications, surface irregularity may affect beam quality or create unwanted intensity variations.

Surface quality describes the presence of scratches, digs, pits, stains, and other visible or microscopic defects. A clean, well-polished surface reduces scattering and improves transmission. The required surface-quality grade depends on the application. General protective windows may accept a different level of surface quality than high-power laser windows or precision metrology components.

Parallelism, or the relationship between the two principal surfaces, is also critical. If the surfaces are not sufficiently parallel, the optical beam can be deviated as it passes through the window. This effect is known as beam deviation or wedge-related deviation. In imaging systems, it may cause alignment errors. In laser systems, it can shift the beam position. For sensitive instruments, the required parallelism must be defined during the design stage.

Thickness tolerance affects both mechanical fit and optical behavior. A window that is too thick may interfere with assembly, while a window that is too thin may not provide adequate strength or environmental protection. Thickness also affects optical path length and, in some systems, focus position. Precision grinding and polishing are therefore necessary to maintain consistent dimensions across production batches.

Coating quality is equally important. An anti-reflection coating with poor adhesion, nonuniform thickness, or inadequate environmental durability can reduce performance even when the glass substrate is excellent. A specialized optical component manufacturer must control cleaning, coating preparation, deposition parameters, handling, and final inspection as part of one connected quality process.

Typical Optical Window Materials

Material selection begins with the intended wavelength range and operating conditions. Different optical materials offer different combinations of transmission, hardness, thermal behavior, chemical resistance, density, and manufacturability. The final selection should be made according to the application rather than by choosing the lowest-cost material.

Optical Glass

Optical glass is widely used for visible and near-infrared windows because it offers good optical homogeneity, stable properties, and broad availability in many grades. It can be ground and polished to tight dimensional and surface specifications. Optical glass is suitable for imaging windows, protective covers, instrument windows, and many general-purpose optical components.

Different glass families provide different refractive indices, dispersion characteristics, thermal properties, and transmission ranges. The selected glass should match the optical design and environmental requirements. For example, some systems prioritize visible transmission and low coloration, while others require improved ultraviolet or near-infrared performance.

Fused Silica

Fused silica is valued for its broad spectral transmission, low thermal expansion, high temperature capability, and resistance to thermal shock. It is often selected for laser systems, ultraviolet optical assemblies, high-temperature instruments, and applications that experience rapid temperature changes.

Its excellent thermal behavior can make it advantageous over ordinary glass in demanding environments. However, fused silica still requires careful processing because surface damage, contamination, and coating defects can compromise performance, particularly in high-power laser applications.

Sapphire

Sapphire offers exceptional hardness, high scratch resistance, and good strength. It can be used where a window must withstand abrasion, pressure, harsh cleaning, or severe mechanical conditions. Sapphire is commonly considered for protective optical covers and demanding industrial or defense-related environments.

Because sapphire is harder to process than many optical glasses, its manufacturing requires suitable grinding, polishing, tooling, and inspection capabilities. The cost and processing time may also be higher. A capable supplier should be able to evaluate whether sapphire is genuinely necessary or whether an optical glass or other material can meet the requirements more economically.

Infrared Materials

Infrared optical windows may use materials such as silicon, germanium, zinc selenide, or other infrared-transmitting substrates, depending on the wavelength range and application. These materials may have particular requirements for coating, handling, surface protection, or environmental sealing.

Material choice for infrared windows must consider not only transmission but also refractive index, thermal behavior, hardness, weight, and operating temperature. In an infrared imaging system, the window may be part of the calibration and focusing design, so dimensional and optical control remain essential.

Design Options for Optical Windows

Optical windows can be manufactured in many forms. A round window may be used in a lens barrel, inspection port, laser housing, or sensor module. Rectangular and square windows are common in camera assemblies, display systems, semiconductor equipment, and automotive modules. Special shapes may be produced to fit a compact housing or to avoid interference with adjacent components.

Edge geometry is another design consideration. Edges may be chamfered, beveled, rounded, or left with a specified edge condition. Proper edge treatment reduces the risk of chipping during assembly and handling. It can also improve safety and allow the component to fit accurately within a mount.

The window may be supplied with a central aperture, stepped profile, curved edge, notch, hole, or other secondary feature. Such features should be defined clearly on the engineering drawing because they can influence fixturing, polishing, coating, and inspection.

Windows are also available with different coating configurations. A single-side coating may be adequate when one surface faces the optical path and the other surface is bonded or enclosed. Double-side coatings may be selected when both surfaces are exposed to the optical system. Edge coatings, protective overcoats, and customized spectral coatings can be considered for specialized conditions.

Uncoated Windows

Uncoated windows are often used in systems where reflection losses are acceptable, where the substrate has adequate natural transmission, or where the customer intends to apply a coating at a later stage. They may also be used as mechanical protective covers outside the critical optical path.

Even without a coating, the substrate must still meet requirements for surface quality, flatness, thickness, cleanliness, and dimensional accuracy. Uncoated does not mean unprocessed or low precision. For many applications, the quality of the polished substrate determines the reliability of subsequent assembly and coating operations.

Anti-Reflection Windows

Anti-reflection coatings reduce reflected light and increase transmitted light across a specified wavelength range and angle of incidence. They are widely used in imaging systems, laser equipment, optical sensors, and instruments where signal strength and contrast are important.

A coating must be matched to the operating wavelength, polarization conditions, angle of incidence, substrate material, and environmental requirements. A coating designed for normal incidence may not provide the same performance at a steep angle. For this reason, the design specification should define the expected operating conditions rather than only stating a general request for an anti-reflection coating.

Protective and Specialized Coatings

Some optical windows require coatings designed to improve abrasion resistance, moisture resistance, chemical durability, or laser damage resistance. Other windows may require selective transmission or reflection over a specific spectral band. The coating design should be evaluated together with the substrate and application environment.

When a window is exposed to outdoor conditions, automotive cleaning, industrial particles, or repeated contact, coating durability can be as important as initial optical performance. A reliable supplier should discuss expected cleaning methods, humidity, temperature range, radiation exposure, and mechanical handling before finalizing the coating system.

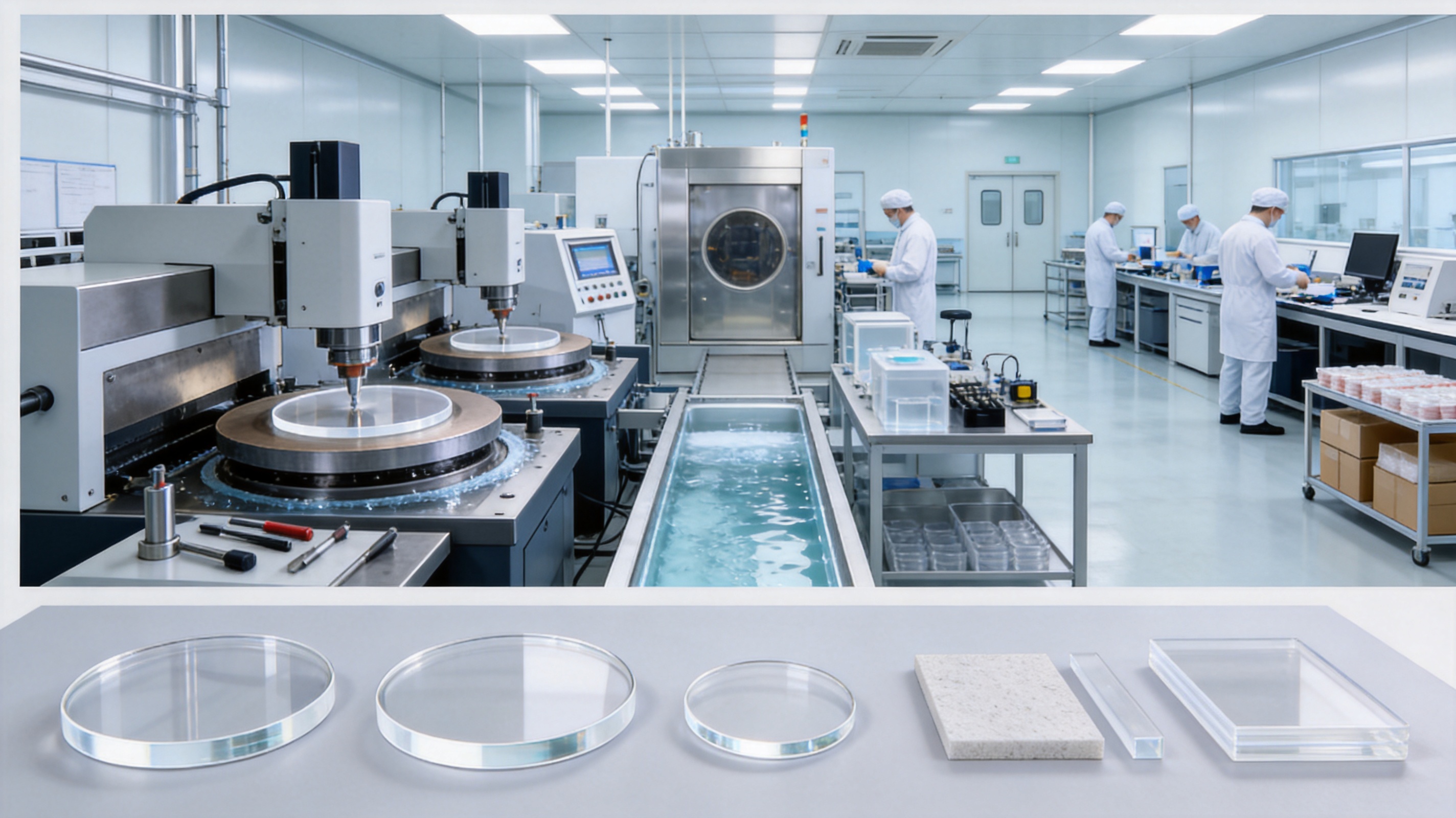

Precision Manufacturing Process

The production of an optical window begins with technical communication. Drawings, three-dimensional models, sample parts, or written specifications are reviewed to confirm dimensions, tolerances, material, surface quality, flatness, parallelism, coating requirements, inspection criteria, packaging, and intended use. A clear technical review reduces the risk of producing a component that satisfies one parameter but fails in the assembled system.

Material Preparation

Suitable raw material is selected according to the approved specification. The material must be inspected for visible defects, inclusions, bubbles, striae, edge damage, and other characteristics that could affect performance. Material traceability is important because it connects the finished component to its original batch and processing records.

The raw material is then cut or shaped into blanks with an allowance for later grinding and polishing. Cutting must be controlled to minimize chips, cracks, internal stress, and excessive material loss. The blank dimensions are selected according to the final geometry and the requirements of the processing fixtures.

Grinding and Shaping

Grinding establishes the basic thickness, shape, edge profile, and geometric relationship between the surfaces. Coarse grinding removes cutting damage and brings the blank closer to the required dimensions. Fine grinding produces a more uniform surface and prepares the component for polishing.

During grinding, process control is required to avoid excessive subsurface damage. If cracks or stress extend too deeply into the material, later polishing may not remove them completely. Grinding parameters, abrasive selection, cooling, fixture design, and cleaning all influence the quality of the next processing stage.

Polishing

Polishing removes the fine damage left by grinding and creates the optical surfaces required for transmission. It is one of the most sensitive stages in optical window manufacturing. The process must balance material removal rate, surface quality, flatness, edge control, and dimensional consistency.

Precision polishing may be performed using suitable polishing machines, tools, abrasives, and process control methods. The method depends on the material, component size, shape, tolerance, and production volume. Windows with demanding flatness or surface-quality requirements may require additional polishing steps and repeated inspection.

Polishing must also control the relationship between the two surfaces. If the first surface is polished accurately but the second surface is not positioned correctly, the final component may have excessive wedge or thickness variation. A coordinated process is therefore necessary to maintain both optical and mechanical requirements.

Edge Processing

Edge processing includes chamfering, beveling, rounding, and edge inspection. A correctly processed edge improves handling safety and reduces the possibility of chipping during assembly. It also helps the window fit into a mount without unwanted point contact or stress concentration.

Edges can be particularly vulnerable during cleaning, coating, inspection, and transportation. Careful edge treatment and suitable packaging protect the finished component from damage after polishing.

Cleaning

Optical cleaning removes particles, polishing residue, oils, fingerprints, and other contaminants. Cleaning is not a single action but a controlled sequence that may include washing, rinsing, drying, and inspection. The appropriate cleaning method depends on the substrate, coating, and contamination type.

Cleanroom-style handling practices are important for precision optical windows because a small particle may be visible in an imaging system or create a defect in a coating. Operators must use appropriate gloves, tools, containers, and procedures to reduce recontamination after cleaning.

Coating

When coating is required, the cleaned optical windows are loaded into the coating equipment under controlled conditions. The coating process is selected according to the required spectral performance and durability. Deposition parameters must be controlled to achieve repeatable layer thickness, adhesion, and optical behavior.

Coating uniformity can be affected by component position, surface condition, fixture design, chamber conditions, and process stability. For this reason, coating production requires both equipment capability and process experience. After deposition, coated windows are inspected for appearance, adhesion, spectral performance, and other specified criteria.

Final Inspection

Final inspection verifies that the optical window meets the approved requirements. Typical inspection categories include dimensional accuracy, thickness, surface quality, flatness, parallelism, coating appearance, transmission, reflection, cleanliness, and packaging condition.

The exact inspection methods depend on the product specification. Dimensional tools, optical interferometry, visual inspection under controlled illumination, spectrophotometric measurement, and other suitable instruments may be used. Inspection results should be recorded in a way that supports traceability and continuous improvement.

Manufacturing Strengths Supporting Optical Window Production

A precision optical window supplier must combine engineering knowledge with stable production control. HLL’s experience as a manufacturer of precision optical components provides a foundation for producing windows for multiple industries. Its product focus includes laser optics, automotive optics, semiconductor optics, and consumer optics, each of which requires different combinations of precision, durability, cost control, and delivery reliability.

The company was founded in 1998 and has more than 300 employees. Its facility covers approximately 35,000 square meters. This scale supports the organization of engineering, production, inspection, quality management, and customer service functions within a professional manufacturing structure.

HLL has obtained ISO9001:2015 and ISO14001:2015 certifications, as well as IATF16949 certification. These certifications represent important foundations for process documentation, quality management, environmental management, and automotive-related production control. Certification alone does not replace product-specific engineering, but it demonstrates that the company operates within structured management systems.

The company is also recognized as a High-Tech enterprise in Jiangsu Province. It has established the Jiangsu Precision Optical Lens Engineering Technology Center and the Jiangsu Enterprise Technology Research Center. These technical resources support process development, product improvement, tooling evaluation, and the resolution of application-specific optical challenges.

HLL has obtained invention patents, utility model patents, and Jiangsu High and New Tech Products. Such technical achievements indicate an emphasis on engineering development rather than relying only on standard catalog products. This can be valuable when a customer requires a customized optical window with unusual dimensions, environmental demands, coating requirements, or integration conditions.

The company exports to more than 20 countries and holds more than 30 certificates and patents. International experience can help a supplier understand different drawing conventions, inspection expectations, packaging standards, communication practices, and delivery requirements. For customers purchasing optical windows across borders, clear documentation and consistent quality are especially important.

Advantages Compared with General Glass Suppliers

General glass suppliers may be able to provide transparent plates or cut glass, but precision optical windows require a broader set of capabilities. The difference is particularly important when the window is part of the optical path rather than simply a protective cover.

Optical Engineering Knowledge

A specialized optical manufacturer understands how flatness, wedge, surface quality, thickness, refractive index, coating performance, and wavelength interact. This knowledge allows the supplier to identify potential problems before production. A general glass processor may focus primarily on size and appearance, while an optical component manufacturer evaluates the effect of the window on the complete optical system.

Process Integration

Optical window production involves multiple connected steps. Material preparation, grinding, polishing, cleaning, coating, inspection, and packaging must be managed as a continuous process. When these activities are coordinated within one precision manufacturing organization, process feedback can be faster and the risk of communication gaps can be reduced.

Customization Capability

Many optical windows are designed for a particular instrument or module. Customers may need special dimensions, edge profiles, tolerances, materials, coatings, or packaging. A specialized manufacturer can review the drawing, propose practical process solutions, and develop a repeatable production method rather than treating every request as a simple cutting operation.

Quality System and Traceability

Optical systems often require consistent performance across multiple production batches. Structured quality systems support documented procedures, inspection records, corrective actions, and traceability. HLL’s ISO9001:2015, ISO14001:2015, and IATF16949 certifications provide a formal framework for these activities.

Multi-Industry Experience

Experience across laser, automotive, semiconductor, and consumer optical applications helps a manufacturer understand the different priorities of each sector. Laser customers may emphasize coating damage resistance and wavefront quality. Automotive customers may prioritize vibration, temperature cycling, reliability, and volume production. Semiconductor customers may require cleanliness, stability, and highly controlled process conditions. Consumer optics may require a balance of appearance, performance, cost, and delivery.

Engineering Support

Engineering support is valuable when the customer has a concept but not yet a fully optimized production drawing. A manufacturer can help review material selection, tolerance allocation, coating specifications, edge treatment, inspection methods, and packaging. This collaborative approach may prevent excessive tolerances that increase cost without improving system performance.

Optical Windows for Laser Applications

Laser systems are particularly sensitive to window quality. A window can influence beam transmission, reflection, wavefront distortion, polarization behavior, and laser-induced damage performance. The appropriate substrate and coating depend on wavelength, power density, pulse duration, beam diameter, angle of incidence, and environmental conditions.

For high-power or pulsed lasers, contamination control is essential. Absorbing particles or coating defects may become localized heating points and create damage under intense illumination. The window must therefore be cleaned, inspected, handled, and packaged carefully.

Laser windows may also need low absorption, controlled surface flatness, low scatter, and suitable anti-reflection performance. The specification should identify whether the laser is continuous-wave or pulsed, the expected power or energy density, and the operating wavelength. These details help the manufacturer select a suitable process and inspection plan.

Optical Windows for Automotive Systems

Automotive optical systems operate in a demanding environment. Components may experience temperature cycling, vibration, mechanical shock, dust, humidity, ultraviolet exposure, cleaning chemicals, and rapid changes in illumination. An optical window used in a camera, sensor, display, or driver-assistance module must maintain performance throughout the expected service life.

Automotive windows may require high transmission in the visible or near-infrared range, low distortion, durable coatings, accurate dimensions, and controlled appearance. The component may also need to fit within a compact housing with seals, adhesives, or mechanical retainers.

IATF16949 certification is relevant to automotive-related quality management because automotive production typically requires documented processes, risk management, traceability, change control, and continuous improvement. These systems can help support stable production when optical windows are supplied for automotive programs.

Optical Windows for Semiconductor Equipment

Semiconductor manufacturing and inspection equipment often requires highly controlled optical components. A window may separate an optical module from a process chamber, protect a sensor, or provide a viewing path for inspection. Cleanliness, dimensional stability, low contamination, and consistent optical transmission can be essential.

Semiconductor applications may also involve vacuum conditions, chemical exposure, elevated temperature, plasma, or ultraviolet radiation. The window material and coating must be selected according to the process environment. Packaging and handling are especially important because particles or residues can compromise sensitive equipment.

A supplier with experience in precision optical manufacturing can work with the customer to establish cleaning, inspection, packaging, and acceptance criteria appropriate to the equipment environment.

Optical Windows for Consumer and Industrial Products

Consumer optical products often require high visual quality, compact dimensions, repeatable performance, and competitive manufacturing cost. Camera modules, sensors, displays, wearable devices, and optical readers may use customized windows with anti-reflection coatings and carefully controlled edges.

Industrial products may prioritize durability, easy cleaning, temperature resistance, and long-term supply. Machine-vision systems, barcode readers, inspection instruments, and measurement equipment depend on windows that preserve image quality while protecting internal optics from dust and mechanical contact.

In both sectors, the most appropriate solution is usually the one that balances optical performance and manufacturing efficiency. A specialized supplier can help define realistic tolerances and select a process that is stable at the required production volume.

Key Specifications to Define Before Ordering

A clear technical specification is the best starting point for optical window production. Customers should provide the following information whenever possible:

Specification Category	Typical Information	Why It Matters
Material	Optical glass, fused silica, sapphire, infrared material, or approved equivalent	Determines transmission, thermal behavior, hardness, weight, and processing method
Shape and Size	Round, square, rectangular, polygonal, or custom profile	Controls tooling, fixturing, assembly, and packaging requirements
Thickness	Nominal thickness and allowable tolerance	Affects mechanical fit, optical path length, strength, and weight
Surface Quality	Scratch-dig or equivalent acceptance level	Controls scattering, appearance, and imaging performance
Surface Flatness	Specified wavefront or flatness tolerance	Influences transmitted wavefront and beam quality
Parallelism	Wedge or angular tolerance	Controls beam deviation and alignment effects
Coating	Uncoated, anti-reflection, reflective, protective, or custom spectral coating	Determines transmission, reflection, durability, and wavelength response
Wavelength Range	Ultraviolet, visible, near-infrared, infrared, or multiple bands	Guides material and coating selection
Environmental Conditions	Temperature, humidity, pressure, chemicals, vibration, and cleaning method	Supports suitable material, coating, sealing, and durability decisions
Inspection	Dimensional, optical, coating, cleanliness, and documentation requirements	Establishes how product conformity will be verified

Customers should also identify the installation orientation, expected angle of incidence, polarization conditions, bonding method, mounting stress, and any restrictions on coating over the edge. These details can influence the final design and help avoid performance problems during assembly.

Quality Control from Raw Material to Delivery

Quality control should begin before processing. Raw materials need to be checked against the approved material type and inspected for defects that may become visible after polishing. Material identification and batch records support traceability throughout production.

During grinding and polishing, process parameters and intermediate dimensions should be monitored. This helps identify drift before the component reaches the final stage. Early detection can reduce scrap, improve consistency, and make corrective action more effective.

After polishing, surfaces should be inspected under suitable lighting and magnification. Dimensional measurements should confirm thickness, diameter, length, width, edge condition, and other drawing requirements. Optical measurements may be required for flatness, parallelism, transmission, or coating behavior.

Cleanliness inspection is also important. A component may meet dimensional specifications but still fail in the customer’s application if it contains particles, stains, fingerprints, or residues. Optical windows should therefore be packaged in a manner that protects their surfaces during storage and transportation.

For recurring production programs, statistical monitoring and periodic process review can help maintain consistency. If a customer changes the material, coating, drawing, or application conditions, the supplier should conduct a technical review before implementing the change.

Packaging and Handling

Finished optical windows must be protected from scratches, edge damage, dust, humidity, and contact with unsuitable materials. Packaging design depends on component size, coating sensitivity, quantity, transportation distance, and customer requirements.

Individual protective separation may be required for high-quality polished surfaces. Larger windows may need rigid trays or custom supports to prevent movement. Coated parts should be handled with appropriate gloves and tools, and the packaging materials should not leave residues on the optical surfaces.

Clear labeling supports traceability and reduces the risk of mixing different materials, coatings, or production batches. The package should identify the product information required by the customer while protecting the components from environmental exposure.

How to Select an Optical Window Manufacturer

The lowest quoted price is not always the lowest total cost. A window that creates alignment problems, coating failures, assembly delays, or premature replacement can be much more expensive than a slightly higher-priced component manufactured under a stable process.

When selecting a supplier, customers should review the manufacturer’s experience with similar materials, sizes, tolerances, coatings, and applications. It is also useful to confirm whether engineering, polishing, coating, inspection, and packaging are coordinated within the supplier’s production system.

Quality certifications, technical resources, production capacity, equipment condition, inspection capability, and communication quality should all be considered. A supplier that can provide clear technical feedback before production may help reduce the risk of later redesign.

HLL’s history since 1998, more than 300 employees, approximately 35,000 square meters of facilities, international customer experience, and focus on precision optical components provide a foundation for optical window projects. Its certifications and engineering technology centers further support structured development and production management.

Q&A About Optical Windows

What is the main purpose of an optical window?

The main purpose is to transmit light while protecting the optical system from dust, moisture, pressure differences, mechanical contact, or environmental exposure. Because the window is often located in the optical path, it must also preserve the required optical performance.

Are all transparent glass plates optical windows?

No. A general glass plate may be transparent, but an optical window normally has controlled material properties, polished surfaces, defined dimensional tolerances, specified surface quality, and, when necessary, optical coatings. The level of precision depends on the application.

Why are flatness and parallelism important?

Flatness affects the transmitted wavefront, while parallelism affects beam deviation and optical alignment. Excessive errors may reduce image quality, move a laser beam, or introduce measurement uncertainty.

Should an optical window always have an anti-reflection coating?

Not always. An anti-reflection coating is useful when reflection losses, ghost images, or reduced contrast are concerns. However, an uncoated window may be suitable for some protective covers, systems with adequate natural transmission, or applications where the customer will apply a coating later.

How should the substrate material be selected?

The material should be selected according to wavelength range, temperature, thermal shock, chemical exposure, mechanical strength, hardness, weight, and cost. Optical glass, fused silica, sapphire, and infrared materials each have different advantages.

Can optical windows be customized?

Yes. Optical windows can be customized in shape, size, thickness, edge profile, material, surface quality, flatness, parallelism, coating, and packaging. Custom requirements should be defined through an engineering drawing or detailed technical specification.

What information should be provided when requesting a quotation?

Customers should provide the drawing or dimensions, material, wavelength range, coating requirements, tolerances, surface quality, flatness, parallelism, quantity, application environment, inspection requirements, and packaging expectations. More complete information allows a more accurate technical and commercial evaluation.

What makes a specialized optical manufacturer different from a general glass processor?

A specialized manufacturer has experience controlling optical surfaces, wavefront-related parameters, coatings, cleanliness, inspection, and traceability. It can also evaluate how the window will function within a complete optical system rather than treating the product only as a transparent mechanical part.

Can optical windows be used in high-temperature systems?

Yes, provided the material, coating, mounting method, and thermal design are suitable. Fused silica and other specialized materials may be considered for high-temperature or rapid thermal-change environments. The operating temperature and thermal cycling conditions should be provided during design review.

How are coated optical windows inspected?

Inspection may include visual appearance, coating adhesion, spectral transmission or reflection, surface quality, dimensional measurement, and environmental durability tests when required. The specific inspection plan should be agreed according to the coating and application.

Does a smaller optical window require less manufacturing control?

Not necessarily. Small windows may have extremely tight dimensional, surface, coating, or cleanliness requirements because they are installed in compact, high-precision optical modules. Size alone does not determine manufacturing difficulty.

How can customers reduce optical window costs without sacrificing performance?

Customers can begin by identifying the performance parameters that are genuinely necessary. Avoiding unnecessarily tight tolerances, selecting an appropriate substrate, optimizing the coating band, standardizing dimensions, and planning suitable quantities can reduce cost while maintaining system performance.

Conclusion

An optical window is a precision component that combines mechanical protection with controlled optical transmission. Its performance depends on the interaction of material choice, geometry, polishing, surface quality, flatness, parallelism, coating, cleanliness, inspection, and packaging. For applications involving lasers, automotive sensors, semiconductor equipment, imaging systems, or industrial instruments, the window must be designed and manufactured as an integral part of the optical system.

Compared with general glass processing, precision optical manufacturing offers stronger control over wavefront-related parameters, surface quality, coatings, traceability, customization, and application support. These capabilities can provide practical advantages in reliability, assembly consistency, optical performance, and long-term supply.

With a history beginning in 1998, more than 300 employees, a 35,000-square-meter facility, international experience, certified management systems, and engineering technology centers, Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. provides a structured manufacturing base for customized optical windows and other precision optical components. Its focus on laser optics, automotive optics, semiconductor optics, and consumer optics enables it to address a broad range of performance and production requirements.

For customers developing or purchasing optical windows, the most effective approach is to define the application clearly, select the material and coating according to actual operating conditions, establish measurable acceptance criteria, and work with a supplier capable of supporting the complete process from technical review through final inspection. When these elements are managed together, the optical window can deliver stable transmission, reliable protection, and consistent performance throughout the life of the finished system.
