Precision Optical Spherical Mirrors for Demanding Imaging and Laser Applications

Optical spherical mirrors are essential components in systems that must control, redirect, collect, or focus light with dependable accuracy. Used in laser equipment, optical instruments, semiconductor inspection systems, automotive technologies, scientific devices, and consumer electronics, these mirrors combine a precisely shaped spherical surface with a carefully engineered reflective coating. Their performance depends on far more than the appearance of the polished glass. Radius accuracy, surface quality, substrate selection, coating performance, dimensional stability, cleanliness, and inspection standards all influence the final result.

As optical systems become smaller, faster, and more precise, the requirements placed on spherical mirrors continue to increase. Engineers need components that can be integrated efficiently, maintain stable performance over time, and meet application-specific requirements for wavelength, reflectivity, environmental resistance, and mechanical installation. A reliable optical manufacturing partner must therefore provide more than a standard catalog item. It must combine optical design understanding, precision fabrication, advanced coating capability, disciplined quality control, and flexible production support.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd., commonly known as HLL, is an experienced manufacturer of precision optical components in China. Founded in 1998, the company develops and produces optical components for laser optics, automotive optics, semiconductor optics, consumer optics, and related fields. Its optical spherical mirror manufacturing capabilities are supported by a large production facility, experienced technical personnel, certified management systems, and long-term experience in precision optical fabrication.

This article explains the structure, working principles, manufacturing process, quality advantages, customization options, and application value of optical spherical mirrors. It also describes how a specialized manufacturer can help customers achieve consistent performance from prototype development through volume production.

Optical Spherical Mirror

What Is an Optical Spherical Mirror?

An optical spherical mirror is a reflective optical component whose active surface follows a portion of a sphere. Instead of transmitting light like a lens, it reflects incoming light according to the law of reflection. Depending on the shape and orientation of the surface, the mirror can converge light toward a focal region, diverge light away from a virtual focal point, or redirect a beam while preserving a controlled optical path.

Spherical mirrors are generally divided into concave and convex types. A concave spherical mirror has a reflecting surface that curves inward. It can collect and focus parallel rays, making it useful in imaging systems, laser resonators, illumination assemblies, and optical instruments. A convex spherical mirror curves outward and spreads reflected light, providing a wider field of view or beam-diverging function in suitable applications.

The spherical geometry offers important manufacturing and design benefits. Compared with many aspheric surfaces, spherical surfaces can be produced using established grinding, polishing, and testing methods. This can support stable production, attractive cost efficiency, and repeatable results when the optical system is designed to accommodate spherical aberration or when the required performance is appropriate for a spherical form.

However, a spherical mirror is not a simple curved piece of glass. Its optical function depends on a set of interconnected parameters, including the radius of curvature, clear aperture, center thickness, edge thickness, surface profile, surface roughness, wedge, coating reflectivity, and mechanical tolerances. A small deviation in one parameter may influence alignment, focus, image quality, or laser-beam performance.

Key Performance Characteristics

Radius of Curvature

The radius of curvature determines the basic focusing or diverging behavior of a spherical mirror. For an ideal paraxial spherical mirror, the approximate focal length is related to the radius of curvature by the familiar relationship that the focal length is approximately one-half of the radius. In actual systems, the effective focal behavior also depends on the mirror orientation, aperture, wavelength, surrounding medium, and design tolerances.

Consistent radius control is especially important when mirrors are used in multi-element optical assemblies. If the radius varies beyond the design allowance, the position of the focal region may shift. In imaging applications, this can reduce sharpness. In laser systems, it can affect mode stability, beam size, or coupling efficiency. Precision production and inspection are therefore required to ensure that the mirror performs as intended.

Surface Figure and Profile Accuracy

Surface figure describes how closely the actual reflective surface conforms to its specified ideal geometry. A surface with poor figure accuracy can introduce wavefront error and reduce the quality of the reflected beam or image. Depending on the application, manufacturers may control the surface using interferometric testing, contact measurement, profilometry, or other suitable methods.

For demanding optical systems, the surface figure must be considered together with aperture size. A mirror may have a satisfactory central region but insufficient performance near the edge if the usable clear aperture is not properly defined. Professional manufacturing documentation should therefore identify the effective optical area, measurement conditions, and relevant acceptance criteria.

Surface Quality and Roughness

Surface quality refers to visible defects such as scratches, digs, pits, stains, sleeks, and polishing marks. Surface roughness describes smaller-scale irregularities that may scatter light. A high-quality mirror requires controlled grinding and polishing processes to reduce both macroscopic defects and microscopic roughness.

Low scattering is valuable in laser and imaging applications. It can improve contrast, reduce stray light, and help protect sensitive detectors from unwanted optical noise. The appropriate surface quality depends on the wavelength, power level, aperture, and system sensitivity. A specialized supplier can recommend practical specifications that balance performance and manufacturing cost.

Reflective Coating Performance

The coating determines how efficiently the mirror reflects light and how well it survives its operating environment. Common coating families include metallic coatings and dielectric multilayer coatings. Aluminum, silver, and gold are used in different wavelength regions and environmental conditions, while dielectric coatings can provide high reflectivity over a defined wavelength band.

Coating design must be matched to the application. A broadband mirror may be preferred for systems operating across a wide spectral range. A laser mirror may require extremely high reflectivity at a specific wavelength and angle of incidence. An automotive or industrial component may need enhanced environmental resistance, adhesion, humidity stability, and resistance to repeated cleaning.

Coating uniformity is also important. Variations in thickness across the clear aperture can create reflectivity or phase differences. Proper substrate preparation, cleaning, fixturing, vacuum control, deposition monitoring, and post-coating inspection all contribute to stable performance.

Advantages of Precision Spherical Mirrors

Efficient Light Collection and Focusing

Concave spherical mirrors can collect light without the bulk or chromatic behavior associated with refractive elements. Because reflection is not dependent on the refractive index in the same way as transmission through glass, mirrors can be valuable in broadband, infrared, ultraviolet, and laser applications. They can also support optical designs where minimizing chromatic aberration is important.

Compatibility with Broad Wavelength Ranges

A properly selected coating allows a spherical mirror to operate in a specific visible, ultraviolet, near-infrared, mid-infrared, or broadband region. This makes the component adaptable to diverse systems. Rather than relying only on one standard coating, a manufacturer with coating development and process control capability can support different wavelength targets and environmental requirements.

Compact Optical Architectures

Mirrors can fold an optical path, redirect a beam, or provide focusing within a compact enclosure. This is especially useful in laser modules, inspection instruments, projection equipment, and sensor assemblies where available space is limited. A spherical form can offer a practical balance between optical function, manufacturability, and cost.

Stable Performance in Specialized Systems

When the substrate, coating, geometry, and mounting method are selected correctly, spherical mirrors can provide stable operation over long service periods. Stable performance depends on appropriate material selection and process control. Glass, fused silica, silicon, metal, and other substrates may be considered according to thermal expansion, transmission properties, mass, environmental conditions, and system design.

Competitive Manufacturing Economics

Spherical surfaces are supported by mature optical production methods. Compared with highly complex freeform or aspheric surfaces, they can often be manufactured with more predictable process steps and inspection routines. This may shorten development time and help control production costs while maintaining the required optical quality.

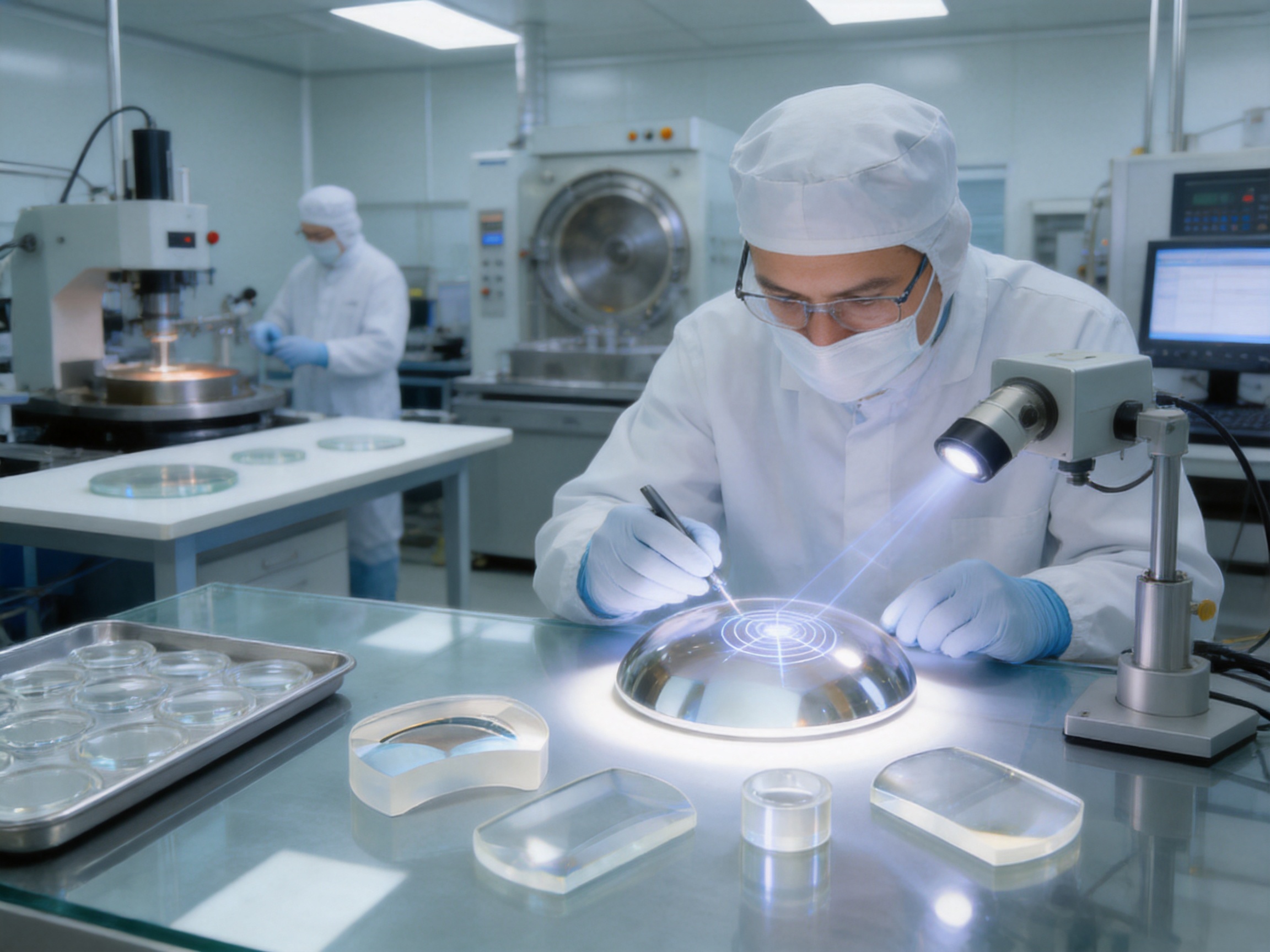

Manufacturing Process for Optical Spherical Mirrors

The manufacturing of a precision spherical mirror begins with technical review. Before production, the manufacturer evaluates the drawing, three-dimensional model, optical prescription, substrate requirements, coating specifications, tolerances, and inspection criteria. This review helps identify potential conflicts between optical performance, mechanical design, coating durability, and production feasibility.

1. Material Selection and Incoming Inspection

The substrate forms the foundation of the mirror. Common considerations include optical homogeneity, thermal expansion, hardness, chemical durability, internal stress, and compatibility with the coating process. For some applications, standard optical glass may be appropriate. For systems exposed to thermal variation or high optical power, a material with improved thermal behavior may be preferred.

Incoming materials should be inspected for dimensions, visible defects, inclusions, bubbles, striae, chips, and other conditions that could affect the final product. Controlled material identification and traceability help ensure that the correct substrate is used throughout production.

2. Cutting, Blanking, and Edge Preparation

Raw material is cut or blanked into a form that provides sufficient allowance for subsequent grinding and polishing. Edge preparation is important because sharp edges can chip during handling or interfere with coating fixtures. Bevels, chamfers, or protective edge treatments may be produced according to the customer drawing.

At this stage, process planning considers the final clear aperture and the location of the optical surface. Adequate allowance must be retained to achieve the specified radius and thickness after grinding and polishing. Careful fixturing reduces the risk of deformation and improves repeatability between production batches.

3. Rough Grinding

Rough grinding establishes the basic spherical curvature and removes material efficiently. Abrasive tools are selected according to the substrate hardness and the required geometry. The process must remove damage from earlier operations while avoiding excessive subsurface defects that could be difficult to eliminate during fine polishing.

Grinding parameters can influence the final figure, edge condition, and surface damage layer. Controlled pressure, abrasive size, coolant management, tool condition, and workpiece support are all important. Experienced operators and process engineers adjust the sequence to achieve a stable transition from rough geometry to precision finishing.

4. Fine Grinding and Smoothing

Fine grinding refines the spherical profile and reduces the depth of subsurface damage. Smaller abrasives and more controlled process conditions prepare the surface for polishing. The goal is to create a uniform, predictable surface that can be polished efficiently without introducing significant localized errors.

Dimensional checks during grinding may include diameter, thickness, sag, radius, and edge condition. Early measurement is valuable because it allows corrective action before the component enters the more time-sensitive polishing stages.

5. Precision Polishing

Polishing removes the remaining fine damage and creates the smooth optical surface required for reflection. Polishing pads, compounds, machine motion, pressure, temperature, and time must be carefully controlled. A process that removes material too aggressively may create figure errors, while insufficient polishing may leave haze, scratches, or residual roughness.

For spherical mirrors, polishing must preserve the intended radius across the clear aperture. Tool wear and pressure distribution can affect the shape. Manufacturers therefore use process monitoring and periodic inspection to maintain a stable relationship between polishing conditions and final geometry.

6. Cleaning and Surface Preparation

After polishing, the component is cleaned to remove abrasive residue, polishing compound, particles, fingerprints, and organic contamination. Cleaning is a critical step before coating because microscopic contamination can reduce coating adhesion or create visible defects.

Cleaning procedures may include aqueous cleaning, ultrasonic treatment, filtered rinsing, controlled drying, and inspection under suitable illumination. The specific method must be compatible with the substrate and any protective treatments. Components are handled with clean tools and protective gloves to reduce the possibility of recontamination.

7. Reflective Coating Deposition

The prepared mirror is placed into a controlled coating system. Depending on the specification, the coating may be applied using vacuum evaporation, sputtering, ion-assisted deposition, or another suitable process. Coating thickness, deposition rate, substrate temperature, chamber cleanliness, and fixture arrangement affect final performance.

For a metallic mirror, the process may include a reflective metal layer and one or more protective layers. For a dielectric mirror, multiple high-index and low-index layers are deposited in a carefully controlled sequence. The optical response depends on layer thickness and refractive index, so process monitoring is essential.

Coating selection should account for wavelength, angle of incidence, polarization, required reflectivity, laser damage risk, humidity, temperature, abrasion, and cleaning conditions. A coating that performs well in a laboratory at one wavelength may not be appropriate for an outdoor automotive environment or a high-power laser assembly.

8. Post-Coating Inspection

After coating, the mirror is inspected for reflectivity, appearance, adhesion, environmental resistance, and dimensional condition. Depending on the project, tests may include spectral measurement, adhesion testing, humidity exposure, thermal cycling, abrasion resistance, or laser damage evaluation.

Final inspection also checks chips, scratches, coating marks, pinholes, stains, edge defects, and packaging cleanliness. Inspection records help establish product traceability and provide evidence that the component meets the approved specification.

Integrated Manufacturing Strengths

The main advantage of working with an experienced optical component manufacturer is the integration of multiple technical disciplines. A spherical mirror is not produced successfully by polishing alone. The substrate, geometry, coating, inspection, handling, and packaging must all work together. An integrated production environment helps reduce communication gaps and allows technical issues to be addressed earlier.

Experienced Technical Team

HLL was established in 1998 and has developed an experienced technical team for precision optical component production. The company has more than 300 employees and supports optical products used in laser, automotive, semiconductor, consumer, and other fields. This cross-industry experience can be valuable when a spherical mirror must meet both optical and mechanical requirements.

Technical experience is particularly important for customized projects. Customers may provide a basic drawing but require assistance with material selection, coating choice, tolerance evaluation, packaging, or production scaling. A capable engineering team can review these requirements and help identify a manufacturable solution without compromising the key optical function.

Research and Development Capability

The company has established the Jiangsu Precision Optical Lens Engineering Technology Center and the Jiangsu Enterprise Technology Research Center. These technical platforms support product development, process improvement, engineering validation, and the application of new manufacturing methods.

Research capability can help customers address challenges such as tighter surface tolerances, improved coating durability, reduced optical scattering, smaller component dimensions, or more demanding environmental conditions. It also supports continuous improvement rather than limiting production to fixed standard designs.

Certified Management Systems

HLL has obtained ISO9001:2015, ISO14001:2015, and IATF16949 certifications. ISO9001:2015 is associated with quality management, process control, documentation, and customer-focused improvement. ISO14001:2015 addresses environmental management and responsible operational practices. IATF16949 is widely used in the automotive supply chain and emphasizes disciplined quality planning, risk control, traceability, and defect prevention.

These certifications do not replace product-specific inspection, but they demonstrate that manufacturing activities are organized within recognized management frameworks. For customers in automotive, industrial, and international markets, a structured management system can support supplier evaluation, audit preparation, and long-term production confidence.

Production Scale and Facility Resources

The company operates at a facility covering approximately 35,000 square meters in Changzhou, Jiangsu, China. A substantial production environment can support dedicated areas for machining, grinding, polishing, coating, inspection, assembly, storage, and packaging. Proper separation and environmental control are important for maintaining cleanliness and protecting finished optical surfaces.

Production scale also supports both development orders and larger-volume programs. A supplier that can manage prototypes, pilot batches, and repeat production is better positioned to maintain continuity as the customer’s demand changes. Scaling must be controlled carefully, because increasing output without preserving process capability can create variation. Documented procedures and inspection data help manage this transition.

Patent and Product Development Experience

HLL has obtained invention patents, utility model patents, and Jiangsu High and New Tech Products. These achievements indicate ongoing activity in technology development and product improvement. For optical spherical mirrors, development work may involve tooling, polishing methods, coating structures, handling systems, inspection techniques, or application-specific component designs.

Advantages Compared with Less Specialized Suppliers

When comparing optical spherical mirror suppliers, buyers should evaluate more than unit price. A low initial price may become expensive if the supplier cannot maintain radius consistency, coating uniformity, delivery stability, or traceability. A specialized manufacturer offers several practical advantages.

Evaluation Area	Specialized Precision Manufacturer	Potential Risk with an Unverified Supplier
Optical geometry	Controlled radius, figure, aperture, and thickness with defined inspection methods	Unclear tolerances or inconsistent curvature between batches
Surface quality	Documented grinding, polishing, cleaning, and visual inspection procedures	Scratches, digs, haze, edge damage, or uncontrolled scattering
Coating selection	Coating matched to wavelength, reflectivity, environment, and application	Insufficient reflectivity, poor adhesion, or premature coating failure
Customization	Ability to review drawings, materials, coatings, dimensions, and packaging	Limited design flexibility and difficulty supporting nonstandard requirements
Quality management	Certified systems, traceability, corrective action, and process documentation	Weak records and limited ability to investigate variation
Production continuity	Support for prototypes, pilot runs, and repeat volume production	Difficulty maintaining delivery and performance as demand increases
Industry experience	Knowledge of laser, automotive, semiconductor, and consumer applications	Insufficient understanding of application-specific risks

A specialized supplier can also reduce the engineering workload on the customer side. Instead of coordinating separate companies for substrate preparation, polishing, coating, inspection, and packaging, the customer may work with one organization that manages the complete component process. This can simplify communication and make responsibility clearer when technical questions arise.

Customization Options

Optical spherical mirrors can be customized in many ways. The most important starting point is the optical specification. Customers may define the diameter, clear aperture, radius of curvature, focal length, concave or convex form, substrate material, surface quality, surface figure, wedge, center thickness, edge thickness, and chamfer dimensions.

Coating specifications may include operating wavelength, wavelength bandwidth, angle of incidence, polarization condition, minimum reflectivity, reflectance uniformity, protective layers, laser damage threshold, and environmental durability. If the mirror will be installed in an automotive or industrial environment, the supplier may need information about vibration, humidity, temperature variation, dust, cleaning chemicals, and expected service life.

Mechanical features can also be customized. These may include mounting diameters, notches, orientation marks, special edge treatments, bonding areas, holes, slots, or integration with a metal holder. Any mechanical change near the clear aperture should be reviewed carefully because it may affect stress, coating coverage, or optical performance.

Packaging is another important consideration. Precision mirrors may require individual protective pockets, cleanroom-compatible materials, anti-static protection, moisture control, shock-resistant cartons, and batch identification. The correct packaging protects the component after final inspection and helps ensure that the customer receives it in the same condition in which it left the manufacturing area.

Applications of Optical Spherical Mirrors

Laser Systems

In laser systems, spherical mirrors may be used for beam folding, cavity construction, beam expansion, focusing, or alignment. The coating must be matched closely to the laser wavelength and power level. Surface figure and roughness influence the quality of the reflected wavefront, while coating absorption and contamination can affect thermal behavior.

Laser applications often require careful control of cleanliness. Dust or residue on a high-power mirror can absorb energy and produce local heating. For this reason, cleaning, inspection, packaging, and handling procedures are as important as the polishing process.

Semiconductor and Machine Vision Equipment

Inspection equipment often depends on controlled illumination and accurate imaging. Spherical mirrors may redirect light into compact optical paths, collect radiation, or support illumination uniformity. Stable geometry and low scattering can improve image contrast and measurement repeatability.

Semiconductor equipment may also require tight contamination control, traceability, and reliable repeat production. A supplier familiar with precision optical manufacturing can help meet these requirements through controlled processes and documented inspection.

Automotive Optical Systems

Automotive applications can include sensing, illumination, display, interior optical modules, and advanced driver assistance equipment. Components used in vehicles may experience vibration, temperature cycling, humidity, dust, and long operating periods. Coating adhesion and environmental durability therefore become important considerations.

The company’s IATF16949 certification and experience in automotive optics provide a foundation for supporting automotive-related optical component programs. Each specific application still requires dedicated validation, but an automotive-oriented quality system can improve risk management and production discipline.

Scientific and Laboratory Instruments

Scientific equipment often uses mirrors to control beam paths, collect light, or create compact focusing arrangements. The appropriate specification depends on the experiment or measurement method. Some systems prioritize broadband response, others require narrowband reflectivity or low wavefront distortion.

For laboratory instruments, customization may be particularly valuable because optical layouts are often developed around unique research requirements. A manufacturer that can support small batches and engineering communication can help researchers and instrument builders move from concept to functional prototype.

Consumer and Projection Optics

Compact consumer devices may use reflective components to fold optical paths, manage illumination, or support imaging. These products often require small size, stable quality, controlled appearance, and competitive production cost. Spherical mirrors can be attractive when their optical performance meets the design requirement and their geometry supports efficient manufacturing.

Quality Assurance and Inspection

Quality assurance begins with clear specifications. Before production, the supplier and customer should agree on drawing revision, measurement methods, acceptance limits, coating test conditions, packaging requirements, and documentation. Ambiguous terms can lead to different interpretations, particularly for surface quality, reflectivity, and clear aperture.

Dimensional inspection may verify diameter, thickness, radius-related dimensions, chamfers, mounting features, and positional tolerances. Optical inspection may evaluate surface figure, wavefront behavior, surface quality, roughness, and reflectivity. Visual inspection under controlled lighting can identify coating marks, edge chips, stains, and other defects.

Process inspection is equally valuable. Measuring after grinding and before coating allows corrective action while the component is still accessible. Monitoring coating batches helps identify changes in deposition conditions. Maintaining records by lot and production date supports traceability and allows recurring issues to be analyzed.

For customers with special requirements, inspection reports, material certificates, coating test results, and sample approval records may be supplied. The level of documentation should reflect the application risk and the customer’s quality procedures.

How to Select the Right Optical Spherical Mirror

The first step is to define the operating wavelength or wavelength range. Reflective coatings are not universally equivalent. A mirror designed for visible light may not provide the required response in the infrared, ultraviolet, or a specialized laser band. If the system operates at multiple wavelengths, the coating should be selected for the complete optical requirement rather than one preferred point.

The second step is to define the optical geometry. Customers should specify whether the mirror is concave or convex, the nominal radius or focal length, the clear aperture, the angle of incidence, and the direction of use. The manufacturer may need information about whether the mirror is used near normal incidence or at a larger angle, since coating performance and effective geometry can change with angle.

The third step is to identify environmental and mechanical conditions. Temperature range, humidity, vibration, vacuum exposure, pressure, cleaning methods, and mounting stress can all influence the suitable substrate and coating. Mirrors used inside a controlled laboratory may require different protection than those installed in a vehicle or industrial machine.

The fourth step is to establish the performance priority. Some projects require the highest possible reflectivity. Others prioritize broadband response, low scattering, compact size, low cost, or rapid availability. Clear priorities help the manufacturer recommend a balanced specification rather than applying unnecessarily tight tolerances to every parameter.

The fifth step is to confirm production and supply expectations. Prototype quantities, annual demand, delivery schedule, batch size, packaging format, and change-control requirements should be discussed early. A product that is suitable for a prototype may require process refinement before it can support stable high-volume production.

Why Process Control Matters More Than Appearance Alone

An optical mirror can look bright and clean while still failing to meet the needs of a precision system. Visual appearance cannot confirm radius accuracy, wavefront quality, coating reflectivity, or environmental durability. Likewise, a mirror with a high reflectivity value at one wavelength may not be suitable if its coating is poorly matched to the operating angle or laser power.

Professional process control connects appearance with measurable performance. Material records, grinding parameters, polishing conditions, cleaning procedures, coating data, and final inspection results create a chain of evidence. This chain makes it possible to identify the source of variation and improve the process over time.

For repeat orders, process control is especially important. Customers need confidence that a mirror supplied six months after the initial batch will match the approved sample. Stable tooling, documented work instructions, calibrated equipment, trained personnel, and controlled changes all contribute to repeatability.

Sustainability and Responsible Production

Optical manufacturing involves materials, abrasives, water, cleaning agents, energy, and vacuum coating processes. Responsible production seeks to reduce waste, manage resources efficiently, control emissions, and protect workers. An environmental management system such as ISO14001:2015 provides a structured framework for identifying and managing environmental responsibilities.

Environmental performance is also relevant to customers. Automotive, industrial, and international buyers increasingly evaluate the complete supply chain, including energy management, chemical handling, waste treatment, and documentation. A supplier with established environmental procedures can better support these expectations.

Sustainability should not be considered separate from product quality. Reducing contamination, improving process yield, extending coating life, and minimizing rework can lower resource consumption while improving delivery reliability. Efficient manufacturing benefits both the environment and the customer’s total cost of ownership.

Customer Support from Development to Volume Production

A successful optical mirror project normally passes through several stages. During the initial discussion, the customer provides the application, drawing, quantity, wavelength, environment, and performance target. The manufacturer reviews the information and identifies any design or process questions.

During sample development, the supplier may produce trial components, confirm the substrate and coating, measure performance, and provide samples for system testing. Feedback from the customer can then be used to adjust tolerances, coating structure, mounting features, or packaging.

During pilot production, the focus shifts to process capability and repeatability. The supplier confirms that the approved design can be produced at the expected batch size while maintaining quality. Inspection data, defect analysis, and corrective actions are valuable during this stage.

During volume production, delivery consistency and change control become increasingly important. The customer may require scheduled production, lot traceability, quality reports, and formal approval of any material or process change. An experienced manufacturer can establish a stable supply arrangement that supports long-term cooperation.

Q&A

What is the main function of an optical spherical mirror?

An optical spherical mirror reflects light using a spherical surface. A concave version can collect and focus light, while a convex version can diverge light or provide a wider reflective field. The exact function depends on the radius, orientation, coating, and system design.

What is the difference between a concave and a convex spherical mirror?

A concave mirror curves inward toward the reflective side and generally converges incoming parallel rays toward a focal region. A convex mirror curves outward and generally causes reflected rays to diverge. Both forms are useful, but their optical behavior and application requirements are different.

Can spherical mirrors be used with lasers?

Yes. Spherical mirrors are commonly used in laser beam paths, resonators, folding assemblies, and focusing systems. The coating must be matched to the laser wavelength, angle of incidence, power level, polarization, and required reflectivity. Surface quality and cleanliness are also important for reducing scattering and absorption.

How should the coating be selected?

The coating should be selected according to wavelength range, reflectivity target, angle of incidence, environment, cleaning method, and optical power. Metallic coatings may provide broad spectral response, while dielectric multilayers can provide high reflectivity over a defined band. Protective layers may be required for humidity, abrasion, or handling resistance.

What substrate materials are available?

Material availability depends on the design and application. Optical glass is widely used, while fused silica, silicon, metals, and other materials may be considered for specific thermal, spectral, mechanical, or environmental requirements. The appropriate choice should be evaluated together with the coating and mounting method.

What information should be included in a quotation request?

A quotation request should include the mirror type, diameter, clear aperture, radius or focal length, substrate, surface quality, surface figure, coating wavelength, reflectivity requirement, angle of incidence, environmental conditions, quantity, inspection documentation, and packaging expectations. A drawing or optical prescription is strongly recommended.

Can optical spherical mirrors be customized?

Yes. Customization may include geometry, dimensions, substrate, coating, edge treatment, mounting features, inspection criteria, and packaging. Custom requirements should be reviewed before production so that optical performance and manufacturability can be balanced.

Why is clear aperture important?

The clear aperture is the portion of the mirror intended to provide usable optical performance. Defects, edge effects, mounting areas, or coating transitions outside the clear aperture may not affect the system if they are correctly located. Defining the clear aperture helps the manufacturer apply the right inspection and acceptance criteria.

How does HLL support quality and reliability?

HLL supports optical component production through experience dating back to 1998, an experienced technical team, a large manufacturing facility, research and engineering centers, and certified management systems including ISO9001:2015, ISO14001:2015, and IATF16949. Product-specific inspection and documentation should be confirmed according to each customer’s requirements.

Can a manufacturer support both prototypes and larger orders?

A manufacturer with engineering resources, process documentation, and suitable production capacity can support the transition from prototype samples to pilot batches and repeat volume production. The exact quantity, lead time, and validation process depend on the design complexity, coating requirements, and inspection standard.

Conclusion

Optical spherical mirrors remain valuable because they provide efficient reflection, compact beam control, practical focusing or diverging performance, and broad application flexibility. Their spherical geometry supports established manufacturing methods, while coating technology allows them to operate across different wavelength regions and environments.

The performance of a spherical mirror depends on the complete manufacturing chain. Accurate material preparation, controlled grinding, precision polishing, effective cleaning, carefully selected coating deposition, and thorough inspection must work together. Customers should evaluate suppliers according to process capability, technical communication, quality systems, customization experience, production stability, and long-term support rather than price alone.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. brings together experience in precision optical components, a technical team of more than 300 employees, a production area of approximately 35,000 square meters, research and engineering platforms, multiple patents and technical achievements, and certifications covering quality, environmental, and automotive-oriented management. Its experience across laser optics, automotive optics, semiconductor optics, and consumer optics provides a strong foundation for developing and producing customized optical spherical mirrors.

For system designers and purchasing teams, the best results come from early technical communication. By sharing the optical prescription, operating environment, wavelength, quantity, and inspection expectations at the beginning of the project, customers can obtain a mirror that is not only visually precise but also functionally reliable, repeatable, and suitable for integration into demanding optical equipment.
