Precision Optical Spherical Mirrors for Laser, Automotive, Semiconductor, and Imaging Applications

Optical spherical mirrors are precision-engineered reflective components designed to collect, redirect, focus, or expand light while maintaining controlled optical performance. Unlike ordinary decorative or industrial mirrors, an optical spherical mirror is manufactured according to strict requirements for curvature, surface quality, dimensional stability, reflectivity, coating durability, and environmental reliability. Its performance depends not only on the reflective coating but also on the accuracy of the substrate, the uniformity of polishing, the control of edge geometry, and the consistency of inspection.

Modern optical systems increasingly require compact components that can deliver reliable performance under demanding operating conditions. Laser equipment, automotive sensing systems, semiconductor inspection tools, projection devices, scientific instruments, and imaging assemblies all depend on mirrors with carefully controlled optical characteristics. In these applications, a small deviation in radius, surface figure, roughness, or coating uniformity can reduce image quality, introduce stray light, lower laser efficiency, or affect system calibration.

A precision optical spherical mirror offers a practical solution for many optical designs. Its spherical geometry can be produced with excellent repeatability, making it suitable for focused production programs as well as customized optical assemblies. Depending on the application, the mirror can be produced as a concave or convex component, with a selected radius of curvature, substrate material, clear aperture, reflective coating, and protective layer. The final product can therefore be adapted to ultraviolet, visible, near-infrared, infrared, laser, automotive, and industrial environments.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. is an experienced Chinese manufacturer of precision optical components. Founded in 1998, the company specializes in the development and production of optical products for laser optics, automotive optics, semiconductor optics, consumer optics, and related fields. Its manufacturing capabilities, engineering resources, quality systems, and experience in international supply provide a strong foundation for producing optical spherical mirrors for demanding customers.

Understanding the Optical Spherical Mirror

An optical spherical mirror is a reflective optical element whose active surface follows part of a sphere. A concave spherical mirror curves inward and can converge incident light toward a focal region. A convex spherical mirror curves outward and diverges reflected light, providing a wider field of view or controlled beam expansion. The choice between concave and convex geometry depends on the optical path, working distance, magnification, field requirements, and system architecture.

The basic focal relationship of a spherical mirror is commonly expressed through its radius of curvature. For an ideal paraxial spherical mirror, the approximate focal length is one-half of the radius of curvature. In real optical systems, performance also depends on aperture, wavelength, incident angle, surface figure, alignment, and the surrounding optical components. For this reason, a mirror cannot be evaluated only by its nominal radius. The entire manufacturing specification must be considered.

Important specifications may include diameter or length and width, thickness, radius of curvature, clear aperture, center thickness, edge thickness, wedge, surface flatness or figure, surface roughness, scratch-dig grade, chamfer dimensions, coating type, coating reflectivity, laser damage threshold, and environmental durability. Depending on the design, the mirror may also require a specific mounting interface, reference edge, positioning feature, or anti-contamination treatment.

Although a spherical surface is geometrically simpler than many aspheric or freeform surfaces, precision production remains challenging. The surface must be generated and polished to a controlled curvature while avoiding irregularity, astigmatism, zonal errors, edge roll-off, and local polishing defects. The coating must then be applied without creating unacceptable stress, absorption, scattering, or reflectance variation. Each process step contributes to the final optical performance.

Product Structure and Optical Performance

The performance of an optical spherical mirror is determined by the interaction of several layers and features. The substrate provides mechanical support and establishes the initial shape. The polished optical surface defines the geometric accuracy. The reflective coating controls how much light is returned and at which wavelengths. A protective coating or overcoat can improve resistance to humidity, abrasion, chemicals, and handling. The edge and back surface affect mounting stability and thermal behavior.

Substrate Selection

Common substrate materials include optical glass, fused silica, quartz, silicon, glass-ceramic materials, and selected optical crystals. Optical glass is widely used because it offers good polishability, dimensional stability, and availability in different grades. Fused silica is preferred in applications requiring low thermal expansion, high ultraviolet transmission before coating, or improved thermal performance. Other substrates may be selected for infrared systems, lightweight assemblies, or special environmental conditions.

Substrate selection should reflect the application wavelength, thermal load, mechanical stress, environmental exposure, and required service life. A material with excellent optical properties may not be the best choice if it cannot withstand the system’s temperature range or mounting method. Precision optical manufacturing therefore begins with technical communication between the customer and the engineering team.

Surface Geometry

The spherical surface is generated to a specified radius and then refined through grinding and polishing. The radius must remain consistent across the effective aperture, while the surface figure must remain within the allowable error band. A stable process is especially important when multiple mirrors must be installed in the same optical system or when replacement parts must be interchangeable.

Concave mirrors may be used for focusing, cavity design, beam collection, relay optics, and imaging. Convex mirrors may be used for beam expansion, field-of-view control, compact imaging paths, and sensor protection. The mirror geometry can be optimized for the working distance and optical conjugates required by the customer.

Reflective Coatings

Reflective coatings are selected according to wavelength and performance requirements. Aluminum coatings are commonly used for broad-spectrum reflection and can be enhanced with dielectric or protective layers. Silver coatings may provide high reflectivity across portions of the visible and infrared spectrum, although they typically require effective protection against tarnishing and environmental degradation. Gold coatings are often selected for infrared applications because of their strong long-wave reflectance. Dielectric multilayer coatings can provide high reflectivity over a defined wavelength range and may be designed for laser systems or narrow-band applications.

The appropriate coating is not determined by reflectivity alone. Engineers must consider angle of incidence, polarization, spectral bandwidth, laser power, pulse duration, absorption, coating stress, abrasion resistance, humidity resistance, and cleaning requirements. A well-designed coating process maintains optical performance while reducing the risk of delamination, pinholes, scattering, and long-term degradation.

Parameter	Typical Engineering Consideration	Importance to the Customer
Mirror geometry	Concave or convex spherical surface with defined radius	Controls focusing, divergence, magnification, and optical path length
Substrate	Optical glass, fused silica, quartz, or another qualified material	Influences thermal stability, polishability, weight, and service life
Surface figure	Controlled deviation from the theoretical spherical form	Affects wavefront quality and image or beam performance
Surface roughness	Fine polished finish with low micro-irregularity	Reduces scattering and improves contrast and transmission efficiency
Reflective coating	Metallic or dielectric coating designed for a defined wavelength band	Determines reflectivity, durability, and laser compatibility
Clear aperture	Usable optical area free from unacceptable defects	Ensures the designed beam or image passes through the active region
Environmental durability	Resistance to humidity, temperature change, abrasion, and chemicals	Supports stable field operation and lowers maintenance requirements

Advantages of Precision Optical Spherical Mirrors

Reliable Optical Function

A precision spherical mirror provides controlled reflection without introducing unnecessary transmission losses associated with transparent optical paths. In many systems, it can redirect light while preserving energy more efficiently than a design that requires multiple transmissive elements. This is useful in laser systems, compact imaging modules, and assemblies where space or optical throughput is limited.

When the radius, surface figure, and coating are carefully controlled, the mirror can deliver consistent focusing or divergence characteristics. This helps engineers maintain predictable system performance during assembly, calibration, and service. Consistency is particularly valuable in equipment manufactured in series because the optical design can be reproduced without extensive adjustment for every unit.

Compact and Flexible Integration

Spherical mirrors can support folded optical paths that reduce the overall size of a system. A concave mirror may combine focusing and reflection in a single component, while a convex mirror may provide field expansion or beam management without the need for a complex lens group. This can help reduce part count, assembly space, and mechanical complexity.

The mirrors can be supplied in various diameters, thicknesses, radii, and mounting formats. Depending on the production requirement, they may be used as standalone components, integrated into optical modules, or delivered as part of a larger assembly. Custom chamfers, edge treatments, back-surface finishes, and reference features can support different mounting strategies.

Broad Wavelength Compatibility

With suitable substrate and coating selection, optical spherical mirrors can be designed for ultraviolet, visible, near-infrared, mid-infrared, and other spectral ranges. This flexibility makes them useful across many industries. A manufacturer with experience in multiple optical sectors can transfer process knowledge between products while still adapting the coating and inspection approach to each wavelength band.

Reduced Chromatic Effects

Reflection from a mirror does not create chromatic dispersion in the same way as refraction through a conventional lens. This makes mirrors useful in broadband or multiwavelength systems where chromatic aberration must be limited. The coating still has a wavelength-dependent response, but the optical geometry can remain advantageous for applications that operate across a broad spectral range.

Potential for Long Service Life

A properly manufactured and protected mirror can provide long-term performance in industrial environments. The substrate must be free from internal and surface defects that could grow under thermal or mechanical stress. The coating must be matched to the operating environment and packaged to prevent contamination. When these factors are controlled, the component can retain its reflective properties through repeated operation and maintenance cycles.

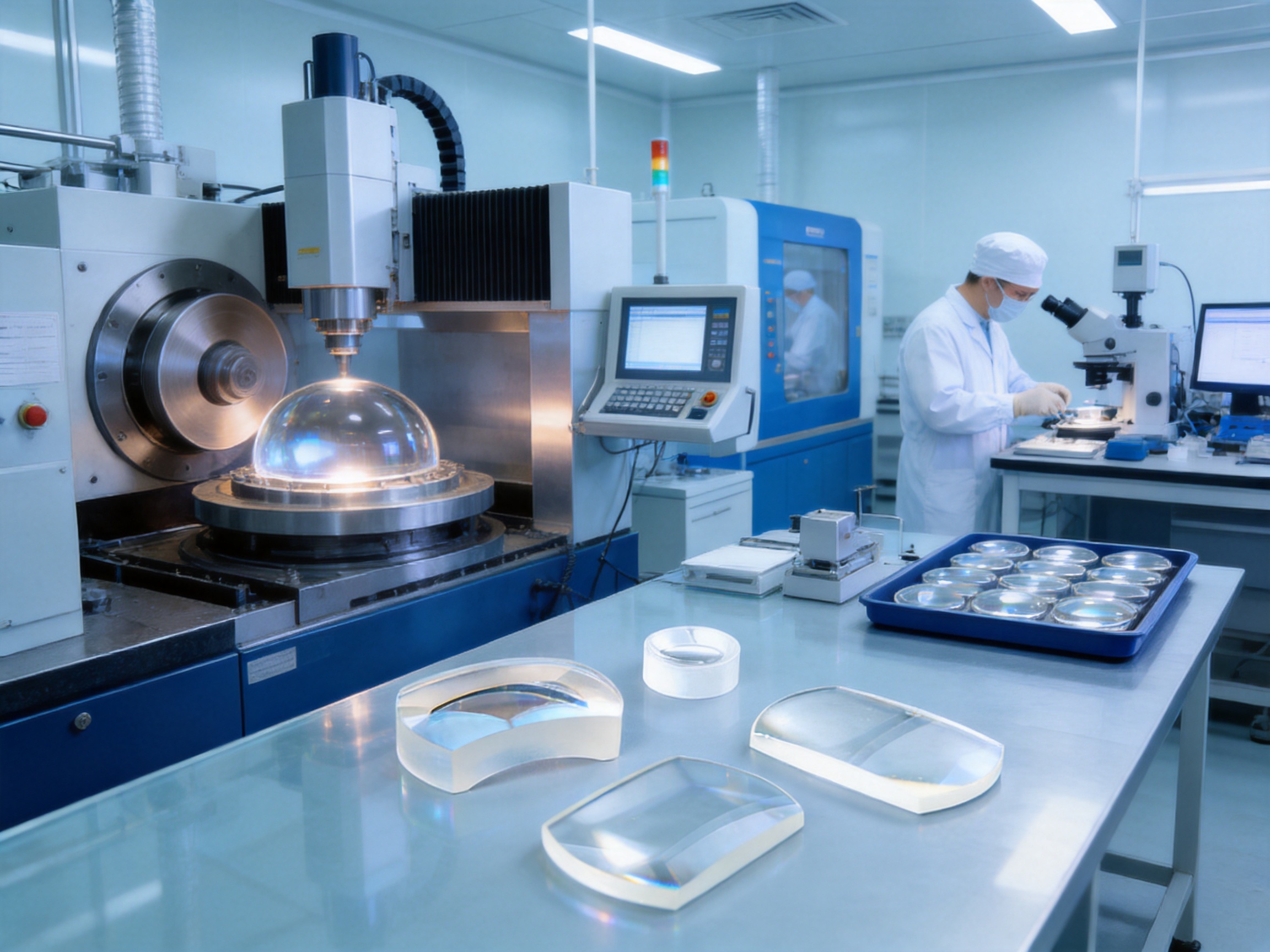

Manufacturing Process for Optical Spherical Mirrors

Advanced optical manufacturing is a controlled sequence rather than a single production operation. Each stage contributes to the final quality of the mirror. Process planning begins with drawing review and material selection, followed by blank preparation, shaping, precision grinding, polishing, cleaning, coating, inspection, and packaging. The process is adjusted according to mirror size, radius, material, coating, quantity, and performance target.

1. Technical Review and Process Planning

Before production begins, engineers review the customer drawing, optical prescription, tolerance requirements, coating specification, packaging needs, and inspection standards. The team evaluates whether the selected substrate, radius, thickness, edge configuration, and coating are compatible with the intended use. Potential risks such as thin edges, deep curvature, small clear apertures, high laser power, or temperature variation are considered during process planning.

For repeat programs, process documentation can define inspection points, tooling requirements, cleaning procedures, coating recipes, and acceptance criteria. This approach improves repeatability and supports reliable production when the same optical component must be supplied over an extended period.

2. Material Preparation

Qualified optical material is cut or formed into blanks with appropriate allowances for grinding and polishing. Incoming material is checked for visible defects, dimensional suitability, and traceability. Depending on the application, additional attention may be given to internal homogeneity, inclusions, striae, thermal expansion, and stress characteristics.

Material preparation is important because defects introduced or overlooked at this stage may become more difficult to detect after shaping. Stable blanks also reduce processing variation and help maintain consistent yield during later operations.

3. Rough Shaping and Radius Generation

The initial spherical form is produced through rough grinding and controlled material removal. Tooling is selected according to the required radius and component geometry. The objective is to establish the basic curvature while leaving sufficient material for fine grinding and polishing.

At this stage, production control focuses on maintaining the correct radius, avoiding excessive subsurface damage, and preventing mechanical stress. The component may be processed individually or in a batch, depending on size and production requirements. Carefully controlled tooling and workholding reduce the possibility of deformation or irregular contact.

4. Fine Grinding

Fine grinding refines the spherical surface and reduces the damage layer created during rough shaping. Abrasive size, pressure, speed, coolant, and process duration are managed to achieve a uniform surface suitable for polishing. The component is measured during production to confirm that the radius and dimensions remain within the process window.

Fine grinding also supports edge control. Edge roll-off or excessive chamfer variation can reduce the effective aperture and cause problems during coating or mounting. A stable grinding process therefore contributes to both optical and mechanical quality.

5. Precision Polishing

Polishing removes the remaining fine damage and creates the smooth surface required for high-quality reflection. The process must balance material removal rate with surface figure control. Excessive polishing can alter the radius or introduce zones, while insufficient polishing may leave micro-scratches, haze, or scattering centers.

Polishing parameters are selected according to substrate type, mirror curvature, diameter, and optical tolerance. The tooling condition, slurry quality, polishing pressure, temperature, and cleaning discipline all influence results. Skilled operators and process engineers are essential when a component requires a combination of low roughness, accurate spherical form, and a large clear aperture.

For demanding optical components, production may include intermediate testing between polishing stages. Measurement feedback allows the process to correct the radius or figure before the component reaches final finishing. This reduces rework and helps ensure that the final surface meets the intended optical prescription.

6. Edge Treatment and Back-Surface Processing

After the active surface reaches the required quality, the edge is inspected and finished according to the drawing. Controlled chamfers reduce the risk of chipping and make the component safer to handle. The back surface may be ground, polished, or treated according to mounting requirements. It may also receive markings or reference features when specified.

Edge quality is especially important for components installed in precision mounts. Chips, sharp edges, or uncontrolled bevels can create particles, interfere with seating, or introduce stress. Consistent edge treatment therefore supports both optical cleanliness and mechanical reliability.

7. Cleaning

Before coating, the mirror must be thoroughly cleaned to remove abrasive residue, organic contamination, particles, and handling marks. Cleaning is performed using procedures appropriate to the substrate and surface finish. The objective is to prepare a chemically clean surface without damaging the polished geometry or creating residue.

Cleanroom discipline, controlled handling, suitable gloves, filtered air, and contamination monitoring are important during this stage. Even a high-quality polished surface can suffer from coating defects if cleaning and handling are not carefully managed.

8. Optical Coating

The prepared component is placed into a coating system selected for the required film technology. Vacuum deposition methods can produce metallic or dielectric layers with controlled thickness and composition. The coating process is monitored to maintain uniformity across the usable aperture and from batch to batch.

Coating design may be optimized for a specific wavelength, a wavelength range, angle of incidence, polarization condition, or laser application. Protective overcoats can improve resistance to humidity and handling. For high-performance mirrors, coating quality is evaluated through reflectance testing, visual inspection, adhesion testing, and environmental qualification as required.

9. Final Inspection

Final inspection verifies dimensions, appearance, surface defects, radius, optical figure, roughness, reflectivity, coating adhesion, and other customer-defined characteristics. Measurement equipment may include radius measurement systems, interferometric methods, profilometry, microscopes, spectrophotometers, and dimensional inspection tools.

Inspection results are recorded according to the applicable quality procedure. Traceability helps connect the finished component to its raw material, process route, coating batch, inspection data, and packaging record. This information is valuable for quality analysis, customer documentation, and future production improvement.

10. Packaging and Delivery

Optical mirrors are packaged with materials that protect the reflective surface from dust, abrasion, moisture, and shock. Individual separation, protective tissue, fitted trays, sealed bags, and rigid external packaging may be used according to component size and customer requirements. Correct packaging is part of product quality because a flawless mirror can be damaged during transport if protection is inadequate.

Optical Spherical Mirror

Advanced Manufacturing Strengths

The strength of an optical component manufacturer is reflected in its ability to combine precision equipment, experienced personnel, process discipline, technical development, and quality management. Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. has specialized in precision optical components since 1998. Its long operating history provides practical experience in translating optical drawings into stable manufacturing processes.

Integrated Technical Capability

The company maintains an experienced technical team and has established the Jiangsu Precision Optical Lens Engineering Technology Center and the Jiangsu Enterprise Technology Research Center. These technical resources support product development, process improvement, optical analysis, and production engineering. Such capabilities are important when customers require more than a standard catalog component.

Optical spherical mirrors can involve demanding combinations of radius, aperture, coating, substrate, and environmental performance. An engineering team that understands the entire optical manufacturing chain can identify design risks earlier and recommend practical solutions. This may include a change in substrate, a different protective coating, modified edge treatment, revised tolerance allocation, or a more suitable inspection method.

Modern Production Environment

The company covers approximately 35,000 square meters and has more than 300 employees. This scale supports organized production, dedicated process areas, quality management, technical support, and capacity planning. A structured manufacturing environment is especially useful for customers that require stable batch delivery rather than one-time prototyping only.

Production scale also supports specialization. Different teams can focus on material preparation, optical processing, coating, inspection, assembly, documentation, and customer support. When these functions operate under a coordinated quality system, the customer benefits from clearer responsibility and improved process control.

Quality Certifications

The company has obtained ISO9001:2015 quality management certification, ISO14001:2015 environmental management certification, and IATF16949 certification. These systems provide a framework for documented processes, corrective action, supplier management, risk control, environmental responsibility, and continual improvement.

IATF16949 experience is particularly relevant to automotive optical applications because automotive customers often require robust traceability, process validation, change control, reliability evidence, and disciplined corrective action. These practices can also benefit customers in laser, semiconductor, consumer, and industrial optics.

Patent and Product Development Experience

The company has obtained invention patents, utility model patents, and Jiangsu High and New Tech Product recognitions. Intellectual property and product development experience indicate an ongoing effort to improve manufacturing methods and develop optical products for changing market requirements.

For customers purchasing optical spherical mirrors, development capability can create practical advantages. A supplier that invests in technology is better positioned to address unusual dimensions, improved coating durability, tighter consistency, special mounting requirements, or new application conditions. It can also support engineering changes without relying solely on standard production recipes.

International Supply Experience

The company exports products to more than 20 countries and has obtained more than 30 certificates and patents. International supply experience involves more than shipping products overseas. It requires consistent documentation, packaging control, communication across time zones, understanding of customer specifications, and the ability to support quality inquiries.

Global experience can also help a supplier understand the expectations of different industries. Customers in automotive, semiconductor, laser, and consumer optics may use different drawings, inspection standards, documentation formats, and approval procedures. A manufacturer with broad exposure can adapt its communication and quality support to those requirements.

Competitive Advantages in Optical Spherical Mirror Production

Quality Consistency

Consistency is one of the most important advantages in precision optics. A mirror that performs well in a single test is not sufficient for a production customer; every approved batch must deliver the expected optical and mechanical characteristics. Controlled processes, inspection records, trained personnel, and documented corrective actions help reduce variation.

Consistent radius and surface figure allow the mirror to be installed without excessive alignment correction. Consistent coating reflectivity supports predictable optical throughput. Consistent dimensions simplify mounting and reduce assembly adjustments. These benefits can lower the total cost of ownership even when the component itself is only one part of a larger system.

Application-Specific Engineering

Different applications place different demands on a mirror. A laser cavity may prioritize reflectivity, low absorption, and laser damage resistance. An automotive sensor may require vibration resistance, temperature stability, contamination control, and long-term environmental durability. Semiconductor equipment may emphasize cleanliness, low scattering, dimensional consistency, and strict traceability. Consumer optics may require compact size, efficient production, cosmetic quality, and competitive cost.

A flexible optical manufacturer can adapt the product to these priorities instead of offering the same mirror specification for every use. The engineering process can establish which requirements are essential and which tolerances can be optimized for cost and manufacturability. This results in a better balance between performance and commercial efficiency.

Efficient Customization

Customization may involve the radius of curvature, shape, size, substrate, coating, chamfer, back surface, packaging, or inspection report. A supplier with established optical processing capabilities can handle these changes within a controlled framework. Customers can receive a component designed for their system instead of modifying the system to fit an unsuitable standard item.

Efficient customization also requires clear drawing review. The supplier should confirm datum definitions, clear aperture, edge exclusion, coating area, cosmetic limits, and measurement methods before production. Early clarification reduces the chance of disagreement after delivery.

Balanced Cost and Performance

Precision does not always mean that every tolerance must be minimized. Excessively tight tolerances can increase processing time and inspection cost without improving the system. A capable manufacturer can help identify the specifications that directly affect optical function and distinguish them from requirements that may be relaxed.

By selecting suitable materials, optimizing batch processing, using repeatable tooling, and applying appropriate inspection levels, the manufacturer can deliver a mirror that meets the actual system requirement at a competitive cost. This engineering-based approach is more valuable than simply reducing material price while risking inconsistent performance.

Support for Multiple Industries

Experience across laser optics, automotive optics, semiconductor optics, and consumer optics gives the manufacturer a broad understanding of optical applications. Knowledge developed in one sector can support another. For example, automotive quality discipline can strengthen traceability for industrial products, while semiconductor cleanliness practices can improve coating preparation for laser components.

This cross-industry capability is useful for customers developing new products. A supplier that has already handled multiple optical environments may identify practical concerns that are not obvious during the initial design stage.

Applications of Optical Spherical Mirrors

Laser Systems

Concave spherical mirrors are used in laser resonators, beam focusing assemblies, beam collection systems, and optical measurement equipment. Convex mirrors may be used to expand or redirect beams. The coating must be selected for the laser wavelength and operating mode, including continuous-wave or pulsed operation.

Laser applications require close attention to surface scattering, absorption, coating defects, and damage threshold. The mirror substrate must remain stable under thermal loading, and the coating must maintain reflectivity during repeated exposure. When the optical design is sensitive to wavefront error, surface figure and radius control become especially important.

Automotive Optical Systems

Automotive optical systems can include cameras, lidar, driver assistance sensors, interior monitoring modules, projection systems, and other compact optical assemblies. Mirrors may help fold the optical path, redirect radiation, expand a field of view, or support a compact sensor architecture.

Automotive applications often involve temperature cycling, vibration, humidity, dust, cleaning chemicals, and long service periods. The optical component must therefore combine optical precision with mechanical and environmental reliability. IATF16949-related process discipline, traceability, and validation experience can be valuable in this field.

Semiconductor Equipment

Semiconductor manufacturing and inspection equipment uses precision optics for alignment, imaging, measurement, laser processing, wafer inspection, and metrology. Optical spherical mirrors may be used where compact reflective paths, low scattering, or wavelength-specific performance are required.

Cleanliness and repeatability are critical in semiconductor environments. Surface contamination, coating particles, or small defects can affect measurement accuracy and equipment uptime. For this reason, the manufacturing process must control cleaning, packaging, handling, and inspection as carefully as polishing and coating.

Scientific and Laboratory Instruments

Scientific instruments may require customized mirrors for spectroscopy, optical experiments, beam manipulation, and imaging. These applications often involve small quantities, special wavelengths, or unusual mechanical configurations. A technical manufacturer can help translate an experimental optical design into a manufacturable component.

Laboratory users may also require detailed inspection data, material certificates, coating curves, or special packaging. Clear communication between the optical designer and supplier helps ensure that the mirror is suitable for the actual experiment rather than only the nominal drawing.

Imaging and Projection Equipment

Optical spherical mirrors can be used in projection systems, imaging modules, illumination assemblies, and compact visual devices. Reflective components can help reduce system length and manage optical paths where a conventional lens arrangement would be too large or introduce unwanted chromatic effects.

For imaging applications, surface figure, roughness, clear aperture, and cosmetic quality influence contrast, resolution, and stray-light performance. Coating reflectivity must be stable across the operating spectrum, and the mirror must be mounted without introducing deformation.

Consumer and Industrial Optical Products

Consumer optical equipment may include compact sensors, scanning devices, display modules, optical readers, and imaging products. Industrial systems may use mirrors for inspection, automation, measurement, alignment, and machine vision. These products often require a combination of high volume, stable quality, compact dimensions, and competitive pricing.

Production experience and process optimization help address these requirements. The supplier can establish repeatable workflows, improve material utilization, and use inspection plans that protect critical characteristics without adding unnecessary cost to every part.

How to Specify an Optical Spherical Mirror

A complete specification allows the manufacturer to assess feasibility and prepare an accurate quotation. Customers should provide the optical drawing or prescription whenever possible. The drawing should identify the mirror type, nominal radius, tolerances, dimensions, clear aperture, substrate, coating, surface quality, and inspection requirements.

Geometric Information

Specify whether the mirror is concave or convex and provide the nominal radius of curvature. Include diameter or external dimensions, thickness, center thickness, edge thickness, and allowable dimensional tolerances. If the component must fit a specific mount, provide the relevant mechanical datum or interface information.

Optical Information

Important optical details include surface figure, radius tolerance, surface roughness, clear aperture, scratch-dig grade, wedge, cosmetic limits, and wavefront requirements. The customer should also state whether measurements must be performed over the full surface or only within a defined clear aperture.

Coating Information

Coating details should include operating wavelength or wavelength range, angle of incidence, required reflectivity, polarization conditions, laser power or energy density, environmental durability, and acceptable coating area. If the mirror will be frequently cleaned, abrasion resistance and cleaning compatibility should be discussed.

Environmental Information

State the expected temperature range, humidity exposure, vibration, vacuum condition, chemical environment, radiation exposure, and service life if known. Automotive and outdoor systems may need stronger environmental protection than laboratory instruments. Semiconductor systems may require stricter cleanliness and outgassing controls.

Quantity and Delivery Information

Provide prototype quantity, annual demand, forecast, target delivery schedule, packaging expectations, and required documentation. Production planning is more effective when the manufacturer understands whether the order is for development, pilot production, or long-term volume supply.

Specification Area	Information to Provide	Reason
Optical form	Concave or convex, radius, focal requirement	Defines the reflective geometry and optical function
Material	Preferred substrate or application conditions	Supports thermal, mechanical, and wavelength compatibility
Dimensions	Diameter, thickness, edge, chamfer, mounting features	Ensures mechanical integration and safe handling
Surface quality	Figure, roughness, scratch-dig, clear aperture	Controls wavefront accuracy, scattering, and image quality
Coating	Wavelength, reflectivity, incidence angle, protection	Determines spectral and environmental performance
Operating environment	Temperature, humidity, vibration, vacuum, chemicals	Enables appropriate durability and validation planning
Quality documents	Inspection report, material certificate, coating data	Supports incoming inspection, traceability, and approval

Quality Assurance and Reliability

Quality assurance begins with supplier and material control and continues through every manufacturing stage. A mature optical process uses documented work instructions, controlled equipment, trained operators, calibrated measurement tools, and defined acceptance criteria. When an abnormal result occurs, corrective action should identify the root cause rather than simply sorting the affected parts.

Process capability is particularly important for optical spherical mirrors because many defects are not visible to the unaided eye. A mirror may appear clean while having a radius error, localized figure deviation, coating nonuniformity, or roughness level that affects system performance. Objective measurement is therefore essential.

Environmental control also supports reliability. Temperature and humidity can influence polishing, coating, measurement, and storage. Clean handling reduces the risk of particles and fingerprints. Proper packaging protects the finished component until it reaches the customer’s assembly area.

For applications with high reliability requirements, customers may request qualification testing. This can include humidity exposure, temperature cycling, adhesion testing, abrasion testing, reflectance stability, vibration, or other application-specific evaluations. The exact test plan should be agreed before production so that the process and documentation are aligned with the final use.

Why Choose an Experienced Optical Component Manufacturer

Selecting a supplier for an optical spherical mirror is a technical decision as well as a commercial one. The lowest initial quotation may not provide the lowest overall cost if inconsistent parts cause assembly delays, calibration problems, field failures, or repeated redesign. An experienced manufacturer can help reduce these risks through better process definition and communication.

A supplier with long-term optical experience understands the relationship between design tolerances and production capability. It can identify which characteristics are critical, recommend suitable materials and coatings, and provide inspection evidence. It can also establish a stable production route for repeat orders, supporting consistent quality over time.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. combines experience in precision optical component production with technical research resources, certified management systems, a sizable manufacturing base, and international supply experience. Its focus on laser, automotive, semiconductor, and consumer optics makes it suitable for customers seeking optical spherical mirrors for varied applications.

The company’s production philosophy emphasizes technical development, process improvement, and quality control. Its certifications, patents, engineering centers, employee base, and export experience demonstrate an infrastructure capable of supporting both customized development and structured production programs.

Q&A About Optical Spherical Mirrors

What is an optical spherical mirror?

An optical spherical mirror is a precision reflective component with a surface shaped as part of a sphere. It may be concave for focusing or convex for divergence and field expansion. Unlike ordinary mirrors, it is manufactured to controlled optical and mechanical tolerances for use in imaging, laser, sensing, measurement, and other technical systems.

What is the difference between a concave and a convex spherical mirror?

A concave spherical mirror curves inward and generally converges reflected light toward a focal region. A convex spherical mirror curves outward and generally diverges reflected light, creating a wider field or controlled beam expansion. The correct type depends on the required optical path and system design.

Which materials can be used for an optical spherical mirror?

Optical glass, fused silica, quartz, silicon, glass-ceramic materials, and other qualified optical substrates may be used. The choice depends on wavelength, thermal expansion, mechanical requirements, weight, environmental exposure, and polishing conditions.

How is the reflective coating selected?

The coating is selected according to operating wavelength, required reflectivity, angle of incidence, polarization, laser power, environmental conditions, and cleaning requirements. Aluminum, silver, gold, and dielectric multilayer coatings are common choices, but the final selection should be made through an application review.

Can optical spherical mirrors be customized?

Yes. Customization may include radius, diameter, thickness, substrate, coating, clear aperture, edge treatment, chamfer, back-surface finish, mounting features, packaging, and inspection documentation. A detailed drawing and application description help the manufacturer confirm feasibility.

Why is surface roughness important?

Surface roughness affects the amount of light scattered by the mirror. Lower roughness generally supports better contrast, lower stray light, and improved optical efficiency. The required value depends on the wavelength and sensitivity of the optical system.

Why is the clear aperture specified separately from the mirror diameter?

The clear aperture is the usable optical area that must meet the specified performance. The outer edge may contain a chamfer, mounting area, or edge exclusion zone. Defining the clear aperture ensures that the active beam or image passes through a controlled region.

What quality certifications are relevant to optical mirror production?

ISO9001:2015 supports quality management, ISO14001:2015 addresses environmental management, and IATF16949 provides a quality framework relevant to automotive supply chains. The appropriate certification depends on the application, but documented management systems generally improve traceability and process control.

How should an optical spherical mirror be handled?

The mirror should be handled with clean gloves, held by the edges whenever possible, and protected from dust, fingerprints, impact, and abrasive contact. The reflective surface should be cleaned only with an approved procedure. Improper wiping or contaminated packaging can damage the coating.

Can a spherical mirror be used in a laser system?

Yes, provided that the substrate, surface quality, coating, reflectivity, absorption, and laser damage threshold are suitable for the laser wavelength and operating conditions. Continuous-wave and pulsed lasers may require different coating and qualification considerations.

What information should be sent when requesting a quotation?

The customer should provide the optical drawing, quantity, material preference, radius, dimensions, coating wavelength, reflectivity target, environmental requirements, inspection standards, packaging needs, and delivery schedule. Application information is also useful when the design includes unusual conditions or high reliability requirements.

How does manufacturing experience improve product performance?

Experience helps the manufacturer select suitable tooling, control polishing, identify process risks, optimize coating preparation, and establish effective inspection methods. It also improves communication during design review and supports stable production when the component is ordered repeatedly.

Conclusion

Optical spherical mirrors are essential components for systems that require accurate reflection, controlled focusing, beam management, compact optical paths, or wavelength-specific performance. Their quality depends on much more than a reflective appearance. Radius accuracy, surface figure, roughness, clear aperture, substrate stability, coating design, cleanliness, packaging, and traceability all contribute to the final result.

A precision manufacturer must therefore combine optical engineering with disciplined production. From technical review and material preparation to grinding, polishing, coating, inspection, and delivery, every stage must be controlled. The supplier must also understand the customer’s application so that the mirror is optimized for the actual operating environment.

With experience dating back to 1998, a manufacturing area of approximately 35,000 square meters, more than 300 employees, international export experience, certified management systems, technical research centers, and expertise in multiple optical industries, Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. provides a strong manufacturing base for precision optical spherical mirrors.

For customers in laser optics, automotive optics, semiconductor equipment, imaging, scientific instruments, and consumer products, a carefully specified and professionally manufactured spherical mirror can improve optical efficiency, system compactness, repeatability, and long-term reliability. Selecting an experienced supplier at the design stage helps ensure that the component meets both the optical prescription and the practical demands of production.

References

1. International Organization for Standardization, ISO 9001:2015, Quality Management Systems—Requirements.

2. International Organization for Standardization, ISO 14001:2015, Environmental Management Systems—Requirements with Guidance for Use.

3. International Automotive Task Force, IATF 16949, Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.

4. Joseph M. Geary, Introduction to Lens Design with Practical ZEMAX Examples.

5. Warren J. Smith, Modern Optical Engineering: The Design of Optical Systems.

6. Daniel Malacara, Optical Shop Testing.

7. Optical Society and professional optical engineering references concerning surface figure, surface roughness, coating performance, and optical fabrication.

8. Manufacturer technical information concerning precision optical component development, production, inspection, certification, and application support.

Product: Optical Spherical Mirror
