Precision Optical Prisms for Laser, Automotive, Semiconductor, and Consumer Applications

Optical prisms are precision components that control, redirect, disperse, fold, separate, or reshape light through carefully engineered interactions between optical surfaces and transparent materials. Although a prism may appear to be a simple geometric element, its performance depends on highly accurate design, material selection, surface preparation, angular control, coating technology, cleanliness, and inspection. In demanding optical systems, even a small deviation in prism angle, surface flatness, wedge, or coating uniformity can influence image quality, laser stability, spectral accuracy, and overall system reliability.

Modern optical equipment requires components that deliver consistent performance under tightly controlled conditions. Laser instruments, automotive optical modules, semiconductor inspection systems, projection equipment, imaging devices, scientific instruments, and consumer electronics all depend on optical parts manufactured to precise specifications. Optical prisms are particularly valuable because they can perform functions that would otherwise require multiple mirrors, lenses, or mechanical assemblies. A well-designed prism can make an optical path more compact, stable, and efficient while reducing alignment complexity.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. is an experienced manufacturer of precision optical components with a product portfolio that includes optical prisms, optical lenses, optical flat mirrors, optical spherical mirrors, automotive interior glass structural components, wafer-related optical parts, and other customized products. Founded in 1998, the company serves customers in laser optics, automotive optics, semiconductor optics, consumer optics, and related fields. Its manufacturing capabilities combine engineering development, precision processing, optical polishing, coating, inspection, and quality management to support both standard and customized prism requirements.

This article explains the operating principles, types, advantages, manufacturing processes, quality factors, application value, and customization possibilities associated with precision optical prisms. It also describes how an established optical component manufacturer can support customers from initial design review through volume production.

Optical prism

Understanding the Function of an Optical Prism

An optical prism is a transparent component, usually made from glass or another optical material, with two or more flat polished surfaces arranged at specific angles. When light enters the prism, it changes direction because of refraction. Depending on the prism geometry, light may also undergo total internal reflection, dispersion, polarization separation, beam deviation, image rotation, or beam displacement.

The behavior of light inside a prism is determined by the refractive index of the material, the angle of incidence, the prism angle, the wavelength of the light, and the surface condition. Since the refractive index varies slightly with wavelength, different colors may travel through the prism at different angles. This property makes dispersive prisms useful in spectroscopy, wavelength separation, optical measurement, and laser systems.

Prisms can also redirect light without requiring reflective coatings on every functional surface. In applications using total internal reflection, light is reflected at an internal surface when the incident angle is greater than the critical angle. This can provide high reflectivity over a broad spectral range while avoiding some of the absorption or durability limitations associated with metallic coatings. However, the performance of total internal reflection depends on material quality, surface cleanliness, geometry, and the surrounding medium.

In imaging systems, prisms may invert, rotate, fold, or offset an image. In binoculars and compact viewing devices, prism assemblies allow a long optical path to be folded into a smaller housing. In laser systems, prisms can be used to deviate beams, separate wavelengths, or provide fine angular adjustment. In automotive optical modules, compact prism structures can direct light through restricted spaces while maintaining stable optical alignment.

Common Types of Optical Prisms

Right-Angle Prisms

Right-angle prisms typically use a 90-degree geometry to turn a light beam by 90 degrees or 180 degrees, depending on the direction of incidence and the selected reflective configuration. They are widely used in imaging systems, laser instruments, alignment devices, and compact optical assemblies.

The performance of a right-angle prism depends strongly on the accuracy of the right-angle relationship, the quality of the hypotenuse and leg surfaces, and the treatment of the entrance and exit faces. When the prism is used through total internal reflection, the internal reflective surface must be highly polished and free of contamination. When a reflective coating is applied, coating adhesion, spectral response, and environmental durability become important considerations.

Equilateral Prisms

Equilateral prisms have three equal sides and are frequently used for beam deviation and dispersion. Their geometry provides a predictable relationship between the incident and emerging beam, making them suitable for optical experiments, spectral instruments, and certain laser applications.

For dispersive use, the material and wavelength range must be considered carefully. Different glass types create different levels of angular separation between wavelengths. High-quality equilateral prisms require consistent refractive properties, accurate prism angles, low internal stress, and precisely controlled surfaces.

Dispersing Prisms

Dispersing prisms separate light into its component wavelengths. They are used in spectrometers, optical analyzers, scientific instruments, and wavelength-selective systems. The key performance factors include dispersion, transmission, angular accuracy, surface quality, and the operating wavelength range.

A dispersing prism may be selected for strong wavelength separation or for low-deviation performance, depending on the application. The ideal geometry is not universal. It must be matched with the light source, detector configuration, spectral band, and desired resolution. Manufacturing tolerances also influence the calibration of the complete optical instrument.

Amici and Image-Rotating Prisms

Amici prisms and other image-rotating geometries are designed to change the orientation of an image while maintaining a compact optical path. They may be used in viewing instruments, imaging modules, measurement devices, and specialized optical assemblies.

These prisms require strict control of angular relationships because a small geometric error can cause image rotation error, lateral displacement, astigmatism, or alignment difficulty. The optical design must also account for polarization effects, coating requirements, and the mechanical mounting method.

Porro and Roof Prisms

Porro prisms and roof prisms are commonly associated with compact viewing systems and binocular-type optical products. They use multiple internal reflections to fold the optical path and modify image orientation. Roof prism systems offer a compact form factor, but they demand particularly careful control of roof angles and phase-related effects.

Precision processing and inspection are essential because microscopic deviations can reduce contrast, create double images, or introduce stray light. When these prisms are produced for high-performance viewing systems, surface quality, coating uniformity, edge treatment, and cleanliness all contribute to the final viewing experience.

Wedge and Beam-Displacing Prisms

Wedge prisms have two nonparallel optical surfaces and are used to deviate a beam without significantly changing the overall optical path length. They can support alignment, beam steering, image displacement, and optical correction functions.

Beam-displacing prisms are useful when two parallel beams must be created or when a beam must be shifted laterally. Their applications include interferometry, metrology, imaging, and specialized laser equipment. The parallelism and wedge angle must be accurately controlled to achieve the required displacement and angular performance.

Advantages of Precision Optical Prisms

Compact Optical Path Design

One of the main advantages of a prism is its ability to fold or redirect an optical path inside a limited space. This can help engineers reduce the size of an instrument, lower the number of optical elements, and simplify mechanical packaging. In automotive and consumer products, where space is often restricted, a compact prism can provide a practical alternative to a larger arrangement of lenses and mirrors.

High Optical Efficiency

Prisms can deliver efficient light transmission when they are made from suitable optical materials and processed with high-quality surfaces. Total internal reflection can offer very high reflectance without the need for a separate reflective coating. For transmission surfaces, anti-reflection coatings can reduce Fresnel losses and improve throughput over a specified wavelength range.

High optical efficiency is particularly important in laser systems, low-light imaging, compact projection systems, and semiconductor inspection equipment. More efficient light handling can improve signal strength, reduce energy consumption, and increase the operating margin of the complete instrument.

Mechanical and Thermal Stability

A prism is a solid optical element with no moving parts. Once correctly mounted and aligned, it can provide stable beam direction and image orientation over long operating periods. This can be a significant advantage compared with systems that rely on several adjustable mirrors or mechanical actuators.

When the optical material, mounting method, and environmental conditions are correctly matched, prisms can maintain dependable performance across changes in temperature and vibration. For automotive and industrial applications, resistance to thermal cycling, mechanical shock, and long-term environmental exposure must be considered during product development.

Functional Integration

A single prism may combine several optical functions, such as beam deviation, image inversion, wavelength separation, and path folding. This functional integration can reduce component count and lower the number of alignment interfaces. Fewer interfaces may also reduce the risk of cumulative tolerance errors and simplify assembly.

Application Flexibility

Optical prisms can be manufactured in many geometries and sizes, using a variety of optical glasses and coatings. Their design can be adapted to ultraviolet, visible, near-infrared, or selected laser wavelength ranges, subject to material and coating suitability.

They can be supplied as uncoated components, anti-reflection coated components, dielectric-coated components, metallic-coated components, cemented assemblies, or customized optical modules. This flexibility allows the prism to be matched to the optical system rather than forcing the system to accommodate a standard part.

Why Manufacturing Precision Matters

The optical performance of a prism depends on more than its nominal shape. A prism can have the correct external dimensions and still fail to perform properly if the optical surfaces are not sufficiently flat, if the prism angle is inaccurate, or if the material contains bubbles, striae, inclusions, or internal stress.

Surface flatness affects wavefront quality. Surface roughness influences scattering and stray light. Angular accuracy determines beam deviation and image orientation. Wedge errors can create unwanted beam walk-off. Edge chips can reduce usable aperture or create stress concentrations. Coating defects may cause absorption, reduced transmission, or premature failure in demanding environments.

For this reason, an optical prism manufacturer must control the entire process rather than relying only on final inspection. Material procurement, cutting, grinding, polishing, cleaning, coating, assembly, measurement, packaging, and traceability all contribute to product quality.

Performance factor	Importance in an optical prism	Typical manufacturing or inspection focus
Prism angle accuracy	Controls beam deviation, image orientation, and optical alignment	Precision grinding, angular measurement, and process compensation
Surface flatness	Influences wavefront distortion and imaging quality	Controlled polishing and interferometric inspection
Surface roughness	Affects scattering, contrast, and laser performance	Fine polishing, cleanliness control, and roughness measurement
Material homogeneity	Supports consistent refractive behavior and low wavefront error	Material certification, visual inspection, and optical testing
Coating uniformity	Determines transmission, reflection, and environmental durability	Vacuum coating control, witness samples, and spectral testing
Dimensional tolerance	Ensures reliable mounting and repeatable assembly	Coordinate measurement, gauges, and controlled machining
Cleanliness	Reduces absorption, scattering, contamination, and coating defects	Ultrasonic cleaning, filtered air, controlled handling, and inspection

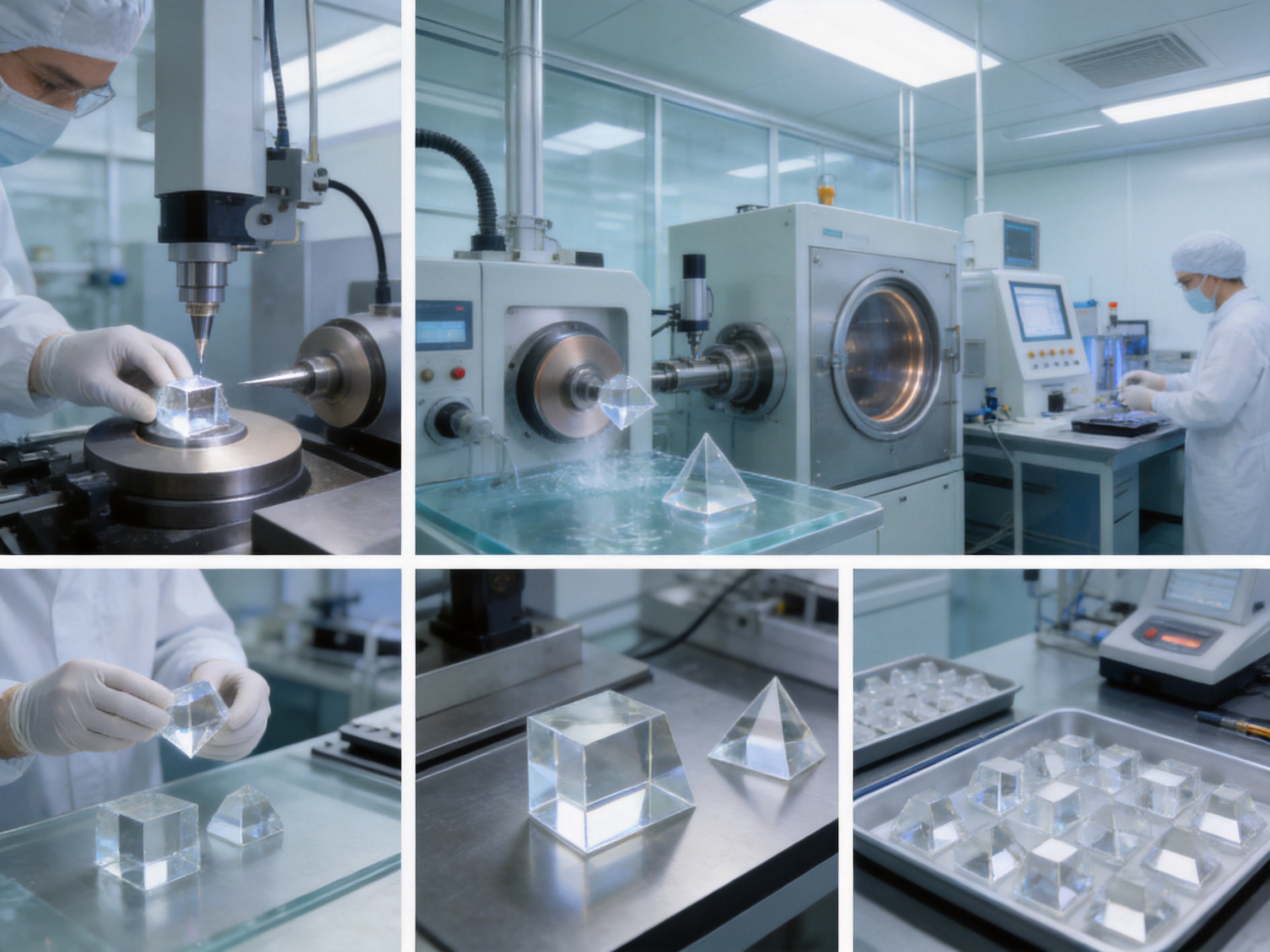

Advanced Manufacturing Process for Optical Prisms

1. Technical Design Review

Production begins with a review of the customer’s optical drawing, specifications, application conditions, and expected production volume. Engineers evaluate the prism geometry, material, wavelength range, clear aperture, surface quality, coating requirements, dimensional tolerances, environmental conditions, and packaging needs.

At this stage, the manufacturer may identify potential conflicts between optical performance and mechanical requirements. For example, a very thin edge may reduce mechanical strength, while an extremely tight angle tolerance may require additional processing or a different inspection method. Early engineering review helps establish a practical process route and reduces the risk of changes later in production.

2. Optical Material Selection

The selection of optical glass or another transparent material depends on refractive index, dispersion, transmission range, thermal properties, chemical resistance, mechanical strength, and availability. Laser applications may require materials with low absorption and suitable resistance to laser-induced damage. Imaging applications may prioritize homogeneity, low stress, and stable transmission.

Material quality is verified through documentation and incoming inspection. Important characteristics may include refractive index consistency, internal quality, bubble and inclusion levels, striae, annealing condition, and dimensional suitability for cutting. Proper material selection is one of the most effective ways to improve final optical performance.

3. Cutting and Blanking

Large glass blanks are cut into manageable pieces using controlled diamond tools or other suitable methods. The cutting process must balance productivity with edge integrity. Excessive mechanical stress can create microcracks that later expand during grinding or polishing.

Blank dimensions are normally planned with an allowance for material removal. The allowance must be sufficient to correct geometry while avoiding unnecessary waste. For high-volume products, optimized blank planning can improve material utilization and support more stable production costs.

4. Precision Grinding

Grinding establishes the basic prism geometry and brings the component close to its final dimensions. Coarse grinding removes material efficiently, while subsequent fine grinding reduces subsurface damage and improves geometric control.

For a prism, the relationship between multiple surfaces is especially important. Grinding must control not only individual dimensions but also angular relationships, reference surfaces, perpendicularity, parallelism, wedge, and overall form. Fixtures and process references are selected to maintain consistent orientation from one operation to the next.

5. Fine Grinding and Edge Preparation

Fine grinding prepares the surfaces for polishing and reduces the depth of damage caused by earlier operations. Edges may be chamfered or otherwise treated to improve handling safety and reduce the chance of chipping during subsequent processes.

Edge preparation is also important for coatings and assembly. A controlled chamfer can protect the functional aperture and help prevent small fragments from entering a precision optical system. The dimensions of the chamfer must be controlled so that it does not reduce the usable optical area.

6. Optical Polishing

Polishing transforms ground surfaces into optical surfaces with the required flatness, smoothness, and appearance. The process may use specialized polishing tools, carefully selected abrasives, controlled pressure, and monitored process times. Different prism geometries require different fixturing and polishing strategies.

Polishing must address both local surface quality and overall form. A surface may appear visually smooth but still contain low-frequency form errors that affect the transmitted wavefront. For precision products, process control is therefore combined with quantitative measurement rather than relying on visual appearance alone.

7. Cleaning and Surface Preparation

After polishing, components are cleaned to remove abrasive residue, oils, particles, and other contaminants. Cleaning may include aqueous methods, ultrasonic treatment, filtered rinsing, drying, and controlled handling. The exact process depends on the material, coating, geometry, and contamination risk.

Cleanliness is critical before coating. Microscopic particles or organic residues can create pinholes, adhesion failures, haze, scattering centers, or cosmetic defects. Operators must use suitable gloves, tools, protective packaging, and controlled work areas to preserve the condition of the polished surfaces.

8. Optical Coating

Coatings are selected according to the prism’s optical function and operating environment. Anti-reflection coatings improve transmission through entrance and exit faces. Dielectric coatings can provide high reflection at selected wavelengths. Metallic coatings may be used when broad spectral response or a particular reflective behavior is required.

Coating design must consider wavelength, angle of incidence, polarization, power density, humidity, temperature, abrasion, and expected service life. A coating that performs well at normal incidence may behave differently at a large angle. Similarly, a coating designed for a visible imaging system may not be appropriate for a high-power laser.

Controlled vacuum deposition, process monitoring, substrate preparation, and post-coating inspection help provide stable coating performance. Samples or witness pieces may be measured to confirm spectral transmission and reflectance. Coating adhesion and environmental durability can also be evaluated according to customer or industry requirements.

9. Final Inspection

Final inspection verifies that the prism meets its optical, mechanical, and cosmetic specifications. Depending on the product, inspections may include dimensional measurement, angular measurement, surface flatness, surface quality, transmission, reflectance, wavefront performance, coating appearance, and cleanliness.

Inspection equipment must be appropriate for the tolerance level and product geometry. Measurement results should be traceable to defined standards, and inspection procedures should be repeatable between batches. A strong quality system also records relevant process information so that production trends can be analyzed and corrective action can be taken when necessary.

10. Packaging and Delivery

Optical prisms require packaging that protects surfaces and edges from scratches, impact, humidity, and contamination. Components may be individually wrapped, placed in dedicated trays, separated with lint-free materials, or secured in custom containers. Packaging design is particularly important for coated surfaces and small components that could shift during transportation.

Clear identification and batch traceability support customer receiving inspection, assembly control, and future technical communication. Proper packaging is not a cosmetic detail; it is part of the quality assurance process.

Manufacturing Strengths of an Experienced Optical Component Supplier

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. was established in 1998 and has developed long-term experience in precision optical component manufacturing. The company operates in Changzhou, Jiangsu, China, in a facility covering approximately 35,000 square meters. Its technical and production resources support the development and manufacture of optical components for multiple industries.

The company has more than 300 employees and exports products to more than 20 countries. This international experience helps the company understand different customer requirements related to drawings, inspection reports, packaging, documentation, production scheduling, and quality expectations.

HLL has obtained ISO9001:2015 quality management certification, ISO14001:2015 environmental management certification, and IATF16949 certification. These systems support controlled production, documented procedures, supplier management, corrective action, environmental responsibility, and continuous improvement. IATF16949 experience is especially relevant for automotive optical products, where traceability, process consistency, and risk management are essential.

The company has also been recognized as a high-technology enterprise in Jiangsu Province. Its technical resources include the Jiangsu Precision Optical Lens Engineering Technology Center and the Jiangsu Enterprise Technology Research Center. These platforms support engineering development, process optimization, technical research, and new product introduction.

HLL has obtained invention patents, utility model patents, and Jiangsu High and New Tech Products. Such technical development activity reflects a focus on process innovation rather than simple component trading. Customers benefit from working with a manufacturer capable of reviewing a design, recommending process improvements, developing tooling or fixtures, and supporting stable repeat production.

Advantages Compared with Less Specialized Suppliers

Integrated Engineering and Production

A specialized optical component manufacturer can coordinate optical design review, mechanical interpretation, process development, polishing, coating, inspection, and delivery within one organized production system. This reduces communication gaps that may occur when different stages are handled by unrelated suppliers.

Integrated control is particularly valuable when a prism has unusual geometry, a narrow angular tolerance, a demanding surface specification, or a coating requirement that must be matched to the material. Engineering decisions can be evaluated in relation to actual manufacturing capability.

Better Process Repeatability

Optical components must perform consistently from one batch to another. Repeatability depends on stable equipment, controlled process parameters, trained personnel, inspection feedback, and documented procedures. A company with long-term experience can develop process windows that reduce variation and improve production yield.

Support for High-Precision Applications

HLL serves laser, automotive, semiconductor, and consumer optics markets. These applications have different requirements, but all require reliable optical performance and controlled manufacturing. Experience across several industries helps the manufacturer apply appropriate methods for wavelength, environment, volume, and assembly conditions.

Scalable Production

Some customers require engineering samples or small batches, while others need regular volume production. A manufacturer with established facilities, technical personnel, quality systems, and production planning can support the transition from prototype to mass production more effectively than a supplier focused on only one production scale.

Quality and Environmental Responsibility

ISO9001:2015 and ISO14001:2015 certification demonstrate structured attention to quality management and environmental management. Responsible manufacturing includes controlled use of materials, waste management, process monitoring, and continuous improvement. These practices can support customer sustainability objectives while also improving production stability.

Applications of Optical Prisms

Laser Optics

Optical prisms are used in laser systems for beam steering, beam folding, wavelength separation, polarization management, and compact optical layouts. Their solid construction can provide stable alignment in instruments exposed to vibration or temperature variation.

Laser applications require careful attention to absorption, surface quality, coating damage threshold, contamination, and power density. The prism geometry must also be compatible with the beam diameter and divergence. For high-power systems, even small defects or residues can increase the risk of local heating and optical damage.

Automotive Optical Systems

Automotive optical modules increasingly use compact optical elements for lighting, sensing, displays, driver assistance, and interior functions. Prisms can redirect light through confined spaces, support homogeneous illumination, or help route optical signals within an integrated module.

Automotive components must often withstand vibration, thermal cycling, humidity, cleaning agents, and long service periods. Manufacturing and inspection requirements may be more demanding than those for laboratory prototypes because the component must remain stable across high production volumes and varying environmental conditions.

Semiconductor Equipment

Semiconductor manufacturing and inspection equipment uses precision optics for imaging, alignment, measurement, laser processing, and wafer inspection. Optical prisms may be incorporated into beam paths where angular accuracy, low scattering, high transmission, and compact design are needed.

Semiconductor applications also place strong emphasis on cleanliness and repeatability. Surface particles, coating defects, and material contamination can interfere with sensitive measurements. A controlled cleaning, packaging, and traceability process is therefore essential.

Consumer Optics

Consumer optical products include compact cameras, projectors, viewing devices, sensing modules, displays, and other electronic products. Optical prisms can help reduce product size and create more flexible internal layouts.

Consumer products often require a balance among optical performance, appearance, cost, production volume, and assembly efficiency. A capable supplier can help optimize geometry, tolerances, coating selection, and packaging so that the prism meets performance expectations without unnecessary manufacturing complexity.

Scientific and Measuring Instruments

Scientific instruments use prisms for spectroscopy, beam deviation, image orientation, calibration, interferometry, and optical measurement. In these applications, accuracy and repeatability are usually prioritized over simple visual appearance.

The prism may form part of a calibrated optical path, meaning that its refractive index, prism angle, and surface quality contribute directly to instrument accuracy. Thorough inspection documentation can be important for maintaining calibration records and product traceability.

Customization Options

Optical prisms can be customized in many ways. The most common specifications include material type, wavelength range, prism geometry, external dimensions, clear aperture, angular tolerance, surface quality, surface flatness, coating type, coating durability, edge treatment, packaging, and inspection documentation.

Customers may also request special mounting features, notches, holes, reference marks, cemented assemblies, protective coatings, or integrated mechanical structures. Such features must be considered carefully because machining after polishing can damage optical surfaces or introduce stress. The recommended process sequence depends on the design.

For new products, customers should provide as much information as possible, including optical drawings, three-dimensional models, application wavelength, angle of incidence, beam size, environmental conditions, expected lifetime, production quantity, and inspection standards. If some specifications are not yet defined, an engineering discussion can help establish practical requirements.

Specification category	Examples of customer requirements	Why it matters
Material	Optical glass, fused silica, infrared material, or other transparent substrate	Determines transmission, refractive index, dispersion, and thermal behavior
Geometry	Right-angle, wedge, equilateral, roof, Porro, beam-displacing, or custom shape	Defines the optical function and packaging arrangement
Wavelength	Ultraviolet, visible, near-infrared, or laser-specific band	Guides material and coating selection
Surface quality	Scratch-dig level, roughness, and cosmetic limits	Controls scattering, contrast, and appearance
Surface form	Flatness, wedge, parallelism, and angular relationships	Controls wavefront and beam direction
Coating	Anti-reflection, dielectric reflection, metallic reflection, or uncoated	Determines transmission, reflectance, and environmental performance
Environment	Temperature, humidity, vibration, chemicals, vacuum, or laser power	Influences material, coating, packaging, and validation requirements

Quality Assurance and Inspection Approach

A reliable inspection system begins with clear specifications. Each characteristic should have a defined measurement method, acceptance criterion, and sampling or inspection frequency. This helps avoid uncertainty between supplier and customer and ensures that production decisions are based on objective data.

Dimensional inspection confirms length, width, thickness, chamfer size, hole position, and other mechanical characteristics. Angular inspection verifies prism angles, perpendicularity, wedge, and alignment relationships. Optical inspection may include interferometric flatness measurement, transmission measurement, reflectance measurement, wavefront evaluation, and visual surface quality examination.

Material inspection helps confirm that the substrate is suitable for the application. Coating inspection verifies spectral performance and visual condition. Cleanliness inspection helps identify particles, stains, residues, and other contamination that could affect assembly or operation.

Process records and batch traceability are also important. If a customer identifies a performance issue after assembly, traceable records can help determine the production lot, material source, process conditions, inspection results, and packaging history. This supports efficient investigation and corrective action.

How to Select the Right Optical Prism

The first step is to define the optical function. Determine whether the component must deviate, fold, disperse, rotate, invert, displace, or separate a beam. The required function will determine the basic prism geometry.

The next step is to define the operating wavelength and optical power. A visible imaging application, a near-infrared sensor, and a high-power ultraviolet laser may require very different materials and coatings. The angle of incidence and polarization condition should also be considered because they affect coating behavior.

Mechanical constraints should be reviewed together with optical requirements. Available space, mounting method, clear aperture, edge clearance, reference surfaces, and expected vibration all influence the final design. A prism that performs well optically may still be unsuitable if it cannot be mounted securely or if its edge is too fragile for the assembly process.

Environmental conditions must also be identified. Temperature range, humidity, vacuum exposure, chemical contact, vibration, shock, and cleaning methods can affect material selection and coating durability. For automotive and industrial products, environmental validation may be necessary before volume production.

Finally, the supplier’s manufacturing and inspection capability should be evaluated. Important questions include whether the supplier can process the required material, hold the specified angular tolerance, provide the requested coating, maintain cleanliness, support prototype development, and deliver consistent volume production.

Frequently Asked Questions

What is the main purpose of an optical prism?

An optical prism changes the direction or arrangement of light. Depending on its geometry, it can redirect a beam, fold an optical path, separate wavelengths, rotate or invert an image, displace a beam, or support polarization and measurement functions.

What materials are commonly used for optical prisms?

Optical glass is widely used because it offers controlled refractive properties, good transmission, and broad design availability. Fused silica and other specialized materials may be selected for ultraviolet transmission, thermal stability, laser performance, or infrared applications. The correct material depends on wavelength, power, environment, and optical design.

Are prisms better than mirrors?

Neither component is universally better. Prisms can provide compact beam folding, stable alignment, and total internal reflection, while mirrors may offer flexible angular control and lower transmission-path thickness. The best choice depends on wavelength, space, polarization, power, environmental conditions, and mechanical design.

Why is prism angle accuracy important?

Prism angle accuracy directly affects beam deviation, image rotation, wavelength separation, and alignment. An angular error can create a systematic optical error that may be difficult to correct after the prism is installed in the instrument.

What does surface flatness mean for a prism?

Surface flatness describes how closely an optical surface conforms to an ideal plane. Good flatness helps reduce wavefront distortion and supports better imaging or beam quality. The required flatness depends on the application and wavelength.

Do all optical prisms need coatings?

No. Some prisms use total internal reflection and may not require a reflective coating on the internal surface. Other surfaces may require anti-reflection coatings to increase transmission. Coatings are selected according to the optical path, wavelength, angle of incidence, power level, and environmental conditions.

Can optical prisms be customized?

Yes. Prisms can be customized in material, geometry, dimensions, angular tolerance, surface quality, coating, edge treatment, mounting features, and packaging. A technical review is recommended before production, especially for complex geometries or tight tolerances.

What industries use precision optical prisms?

Precision prisms are used in laser equipment, automotive optics, semiconductor equipment, scientific instruments, imaging systems, measurement devices, consumer electronics, projectors, viewing instruments, and other optical products.

How does an optical manufacturer control product consistency?

Consistency is supported through controlled material selection, documented processing, stable grinding and polishing methods, calibrated inspection equipment, coating process control, cleanliness procedures, batch traceability, and corrective action systems. Certifications such as ISO9001:2015 and IATF16949 can provide additional structure for quality management.

What information should be included in an inquiry?

An inquiry should ideally include a drawing or model, prism type, material, operating wavelength, coating requirements, dimensions, angular tolerances, surface quality, environmental conditions, estimated quantity, packaging needs, and inspection documentation requirements. If some details are not available, the application description can help the manufacturer recommend a suitable configuration.

Conclusion

Optical prisms are essential precision components for controlling light in compact, stable, and highly integrated optical systems. Their ability to redirect, fold, disperse, rotate, invert, or displace light makes them valuable in laser optics, automotive optical modules, semiconductor equipment, scientific instruments, and consumer products.

The performance of a prism depends on the complete manufacturing chain. Material quality, geometry, grinding, polishing, surface flatness, angular accuracy, coating, cleaning, inspection, and packaging must work together. A supplier that controls these stages through an integrated engineering and production system can provide better repeatability and more reliable support for demanding applications.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. brings more than two decades of optical manufacturing experience, a facility of approximately 35,000 square meters, a workforce of more than 300 employees, and technical resources serving international customers. Its ISO9001:2015, ISO14001:2015, and IATF16949 certifications, together with its research centers, patents, and high-technology enterprise recognition, support a structured approach to precision optical component development and production.

For customers requiring standard or customized optical prisms, the most effective approach is to involve the manufacturer early in the design process. A detailed technical review can help optimize the prism geometry, material, coating, tolerance, manufacturing route, and inspection plan. This creates a stronger foundation for prototype validation, stable mass production, and dependable performance in the final optical system.

References

1. Optical Society, principles of geometrical optics, refraction, reflection, and dispersion.

2. International Organization for Standardization, ISO 9001:2015 Quality Management Systems.

3. International Organization for Standardization, ISO 14001:2015 Environmental Management Systems.

4. International Automotive Task Force, IATF 16949 Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.

5. Manufacturer technical information concerning precision optical component production, optical prism processing, and quality management.

6. Standard practices for optical glass inspection, optical surface quality evaluation, coating durability testing, and precision dimensional measurement.
