Precision Optical Prisms for Laser, Automotive, Semiconductor, and Imaging Applications

Optical prisms are among the most versatile components in precision optical systems. By controlling refraction, reflection, dispersion, beam deviation, and image orientation, a prism can perform functions that would otherwise require several separate lenses, mirrors, or mechanical assemblies. In demanding applications, however, a prism is not simply a transparent block with polished surfaces. Its performance depends on optical material selection, geometric accuracy, surface quality, angular tolerances, coating technology, cleanliness, and process control.

For engineers and procurement teams sourcing dependable optical components, the manufacturing partner is as important as the nominal prism design. A prism may meet a basic drawing specification while still producing unwanted stray light, image distortion, beam deviation, chromatic errors, or alignment problems if its manufacturing process is inconsistent. Precision optical prism production therefore requires a combination of experienced engineering, advanced grinding and polishing equipment, reliable inspection methods, and strict quality management.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd., commonly known as HLL, is a professional manufacturer of precision optical components with extensive experience in optical prism production. Founded in 1998, the company serves customers in laser optics, automotive optics, semiconductor optics, consumer optics, and other specialized fields. Its capabilities support the production of custom and standard optical components for applications in which stable optical performance, repeatability, and long-term supply are essential.

This article explains the working principles, types, advantages, manufacturing processes, quality controls, and application value of precision optical prisms. It also examines why a specialized supplier with integrated technical capabilities can provide advantages over general-purpose optical component manufacturers.

Understanding the Function of an Optical Prism

An optical prism is a transparent optical element with two or more plane surfaces arranged at defined angles. When light enters and exits the prism, it changes direction according to the refractive index of the material and the angle of incidence. Depending on the geometry, a prism can deviate a beam, invert or rotate an image, separate wavelengths, reflect light internally, or combine several optical functions into a compact component.

The behavior of a prism is governed by Snell’s law, total internal reflection, surface geometry, and the refractive properties of the selected material. Even a small change in wedge angle or surface flatness can alter the final beam direction. In high-precision systems, this means that dimensional tolerances and optical tolerances must be controlled together rather than treated as separate issues.

Prisms are used in applications where compactness, stability, and reliable angular control are important. They are found in laser beam steering assemblies, surveying instruments, binoculars, rangefinders, microscopes, spectrometers, image sensors, machine-vision equipment, optical communication systems, and automotive sensing modules. Semiconductor inspection and metrology equipment also uses prisms to direct, split, or condition light in restricted spaces.

Compared with a conventional mirror, a prism can provide beam deviation through internal reflection or transmission while protecting the active optical path within a solid component. Compared with a group of lenses, a prism may achieve image orientation or beam folding with fewer parts. This can reduce assembly complexity, save space, and improve system stability.

Common Types of Optical Prisms

Right-Angle Prisms

Right-angle prisms typically have a 90-degree prism angle and are widely used for beam folding and image redirection. Depending on the design, the hypotenuse may function as a reflecting surface or the prism may be used in transmission. Right-angle prisms are common in optical instruments because they can change the direction of light while maintaining a compact mechanical layout.

When the prism is designed for total internal reflection, the reflecting interface may not require a metallic coating. This can provide high reflectance over a broad wavelength range and can improve environmental durability. The performance of total internal reflection depends on the material, incidence angle, surface conditions, and the surrounding medium, so careful design and clean assembly are essential.

Porro Prisms

Porro prisms are used to invert and laterally reverse images. They are well known in binocular and viewing instruments, where they provide image correction while maintaining a practical optical path. Their geometry can deliver a long effective optical path within a compact housing, making them useful where instrument size and viewing ergonomics must be balanced.

Precision in the prism angles, surface parallelism, and edge geometry is critical. Small angular deviations may produce image misalignment or reduced viewing quality. For this reason, Porro prisms require careful control during grinding, polishing, coating, and final inspection.

Roof Prisms

Roof prisms are often used in compact binoculars and other imaging devices. Their roof edge allows the optical path to be folded while maintaining a straight-through instrument configuration. The roof angle and roof-edge quality have a direct effect on image resolution, contrast, and phase behavior.

Roof prism production is demanding because the roof surfaces must meet at a precise angle and maintain a high-quality edge. Surface roughness, edge damage, and angular error can create phase shifts, image artifacts, or reduced contrast. Advanced inspection and experienced process engineering are therefore particularly valuable for this prism type.

Wedge Prisms

A wedge prism has two plane surfaces that are not parallel. It is used to deviate a beam by a controlled small angle, compensate for alignment errors, separate reflections, or adjust the optical axis. Wedge prisms are often integrated into laser systems, optical sensors, interferometers, and alignment instruments.

The deviation angle of a wedge prism is closely related to its wedge angle and material refractive index. Because the intended deviation may be very small, manufacturing tolerances must be tightly controlled. A reliable supplier should be able to measure both mechanical wedge angle and optical beam deviation, depending on the customer’s specification.

Dove Prisms

Dove prisms are designed to invert an image and can also rotate an image when the prism is rotated around its longitudinal axis. They are used in imaging systems, beam manipulation assemblies, and experimental optical equipment. Their long, narrow geometry may require special attention during handling, coating, and edge protection.

For Dove prisms, surface cleanliness and internal homogeneity are important because the prism often operates in a sensitive imaging path. Any contamination, inclusion, or polishing defect can reduce image quality and create visible artifacts.

Dispersing Prisms

Dispersing prisms separate light into its component wavelengths because the refractive index of a material varies with wavelength. Common geometries include equilateral and other triangular prisms. They are used in spectrometers, optical analysis instruments, wavelength measurement systems, and educational or research equipment.

The selected glass or optical material must provide suitable dispersion, transmission, homogeneity, and environmental stability. Surface quality is also important because scattered light can reduce spectral contrast. When customers require a specific wavelength range, the prism design should be evaluated together with anti-reflection coatings and the complete optical path.

Amici and Image-Rotating Prisms

Amici prisms and related image-rotating designs are used to correct orientation or provide a more convenient viewing configuration. They can be found in microscopes, observation instruments, and specialized imaging systems. These prisms require precise control of angular relationships between multiple surfaces.

A prism manufacturer with broad processing experience can adapt production methods to different geometries rather than limiting customers to a narrow catalog of standard parts. This flexibility is especially useful when an optical system requires a customized prism to fit a restricted mechanical envelope.

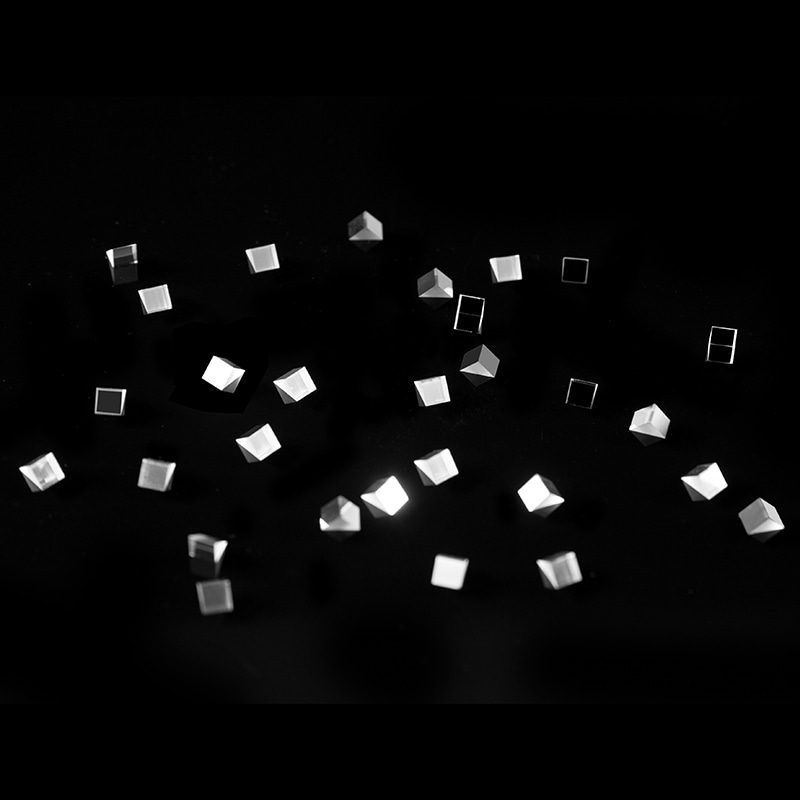

Optical prism

Advantages of Precision Optical Prisms

Compact Beam Management

One of the main advantages of an optical prism is its ability to redirect light within a small volume. A prism can fold a long optical path into a compact package, which is valuable in handheld instruments, automotive modules, laser equipment, and semiconductor inspection tools. Reducing the optical footprint can help engineers design smaller and lighter systems without sacrificing functionality.

High Positional Stability

A prism is a solid component with no moving parts. Once correctly mounted, it can maintain a stable optical relationship over long periods. This is an important advantage in systems exposed to vibration, temperature changes, or repeated operation. Compared with a mechanically adjustable mirror, a fixed prism can reduce the risk of drift and simplify calibration.

Multiple Optical Functions

One prism can perform several tasks, including beam deviation, image inversion, image rotation, wavelength separation, and polarization-related functions in certain designs. Combining functions in one component can reduce the number of interfaces and mechanical supports. Fewer components may also reduce assembly time and the potential for alignment errors.

Efficient Use of Total Internal Reflection

Total internal reflection can provide highly efficient beam redirection without relying on a metallic reflective coating. This can improve durability and reduce coating-related absorption in certain wavelength ranges. The benefit depends on prism geometry and system conditions, but it is a valuable design option for laser and imaging applications.

Compatibility with Custom Optical Systems

Prisms can be designed in many shapes and sizes. They may include chamfers, mounting flats, cut corners, special apertures, or coated surfaces adapted to a particular instrument. A custom prism can often solve packaging and alignment problems that cannot be addressed by a standard lens or mirror.

Key Performance Requirements

Surface Flatness

Surface flatness affects wavefront quality and beam propagation. A surface with insufficient flatness can introduce aberration or angular error, especially in collimated laser applications. The required flatness depends on the wavelength, aperture, incidence angle, and system performance target.

Surface Quality

Surface quality is commonly evaluated by scratch and dig criteria or by other customer-defined visual standards. Scratches, digs, pits, sleeks, and polishing marks can scatter light and reduce contrast. For high-power laser applications, localized defects may also increase the risk of absorption and laser-induced damage.

Angular Accuracy

Prism angles determine the direction of the transmitted or reflected beam. Angular errors can cause optical axis displacement, image misalignment, or inaccurate measurement. In precision assemblies, the angle tolerance may be more important than the external dimensional tolerance because the optical function is directly linked to the relationship between surfaces.

Parallelism and Perpendicularity

Parallelism and perpendicularity control how the prism interfaces with other optical and mechanical components. Poor parallelism may create unwanted beam deviation or make the component difficult to mount. Perpendicularity errors can lead to alignment problems in multi-prism systems and image-forming instruments.

Material Homogeneity

Optical glass must have suitable refractive uniformity and internal quality. Bubbles, striae, inclusions, and refractive-index variations may affect beam transmission and imaging performance. The material must also be compatible with the operating wavelength, environmental conditions, and any applicable laser-power requirements.

Coating Performance

Anti-reflection coatings are used to reduce reflection losses at transmitting surfaces. Reflective, protective, or specialized coatings may also be applied depending on the prism design. Coating performance includes spectral range, reflectance or transmittance, adhesion, durability, and resistance to humidity or temperature cycling.

Cleanliness and Handling

Even a well-polished prism can underperform if it is contaminated during handling or assembly. Fingerprints, dust, residues, and packaging particles may create scattering or coating damage. Professional production therefore includes controlled cleaning, inspection, protective packaging, and clear handling procedures.

Advanced Manufacturing Process for Optical Prisms

1. Technical Review and Optical Design Analysis

Manufacturing begins with a detailed review of the customer’s drawings, specifications, application wavelength, optical function, mounting method, and expected operating environment. The supplier evaluates the prism geometry, material, coating requirements, tolerances, edge conditions, and inspection standards before production begins.

This stage is important because a drawing may define dimensions without fully describing the optical requirement. For example, the customer may need a specific beam deviation, transmitted wavefront, or image orientation rather than merely a nominal prism angle. An experienced technical team can identify such relationships early and recommend practical tolerances that support both performance and manufacturability.

2. Optical Material Selection

Material selection is based on refractive index, dispersion, transmission range, thermal properties, chemical stability, and availability. Optical glass is often chosen for visible and near-infrared applications, while fused silica or other specialized materials may be preferred for ultraviolet, high-power laser, or demanding thermal environments.

HLL’s technical experience in laser optics, automotive optics, semiconductor optics, and consumer optics enables its engineers to consider the complete application rather than selecting material solely by refractive index. The correct material must support the system’s wavelength, power, temperature, environmental exposure, and expected service life.

3. Cutting and Blanking

Large optical blanks are cut into smaller pieces using suitable sawing or blanking methods. The process must minimize chipping, subsurface damage, and material waste. The blank is generally produced with machining allowance so that later grinding and polishing can establish the final dimensions and optical surfaces.

For complex or small components, the blanking strategy must also consider how the part will be held during subsequent operations. Stable fixturing helps maintain angular relationships and reduces the risk of deformation or edge damage.

4. Rough Grinding

Rough grinding removes material efficiently and establishes the general prism geometry. Diamond tools or other suitable abrasives may be used according to the material and required shape. The goal is to reach the approximate angles and dimensions while controlling subsurface damage.

Process parameters such as wheel condition, feed rate, coolant management, pressure, and workpiece support affect the quality of the ground surface. Excessive grinding force can create cracks that remain beneath the visible surface and later emerge during polishing or thermal cycling.

5. Fine Grinding

Fine grinding reduces surface damage and brings the component closer to its final geometry. It improves the starting condition for polishing and helps establish accurate plane relationships. At this stage, operators and process engineers monitor dimensions, prism angles, surface condition, and edge integrity.

Fine grinding is particularly important for prisms because multiple optical surfaces must remain coordinated. Correcting one face without considering the others can produce an angular relationship that is difficult to recover during polishing. A controlled sequence is therefore developed for each prism geometry.

6. Polishing

Polishing produces the transparent, low-scatter surfaces required for optical performance. The process may use pitch, polyurethane, cerium oxide, diamond compounds, or other polishing systems selected for the material and specification. Polishing must remove subsurface damage while maintaining flatness and angle accuracy.

Precision polishing is not simply a matter of achieving a glossy appearance. A surface can look bright while still exhibiting unacceptable waviness, edge roll-off, or localized figure error. Professional optical production combines polishing experience with measurement feedback so that the process corrects the actual surface condition.

For multi-surface prisms, the sequence may involve dedicated fixtures and reference surfaces. The fixture must hold the component securely without introducing stress or distorting the part. Special attention is also given to polishing near edges, where excessive removal can alter the effective aperture or prism angle.

7. Chamfering and Edge Protection

Sharp optical edges are vulnerable to chipping during handling and assembly. Controlled chamfers or protective edge treatments improve mechanical durability while preserving the clear aperture. The chamfer size, angle, and finish should be defined according to the customer’s drawing and application.

In automotive and industrial systems, edge protection is particularly valuable because components may experience vibration, thermal cycling, and automated assembly. In semiconductor and laboratory instruments, clean and consistent edge treatment also supports reliable mounting and contamination control.

8. Cleaning

After polishing, prisms undergo carefully controlled cleaning to remove abrasive particles, polishing compounds, oils, and handling residues. The cleaning method depends on the material, coating status, and part geometry. The process must avoid scratching, staining, or leaving residues on the optical surfaces.

Cleanliness is a critical part of optical quality. A prism that meets its dimensional specification but contains particles or film on the surface may fail in the customer’s assembly. Professional cleaning and inspection help reduce this risk before packaging and shipment.

9. Optical Coating

Coatings are applied when the application requires reduced reflection, enhanced reflection, environmental protection, or wavelength-specific performance. Coating design considers the wavelength range, angle of incidence, polarization, substrate material, power density, and environmental requirements.

Anti-reflection coatings can improve transmission and reduce ghost reflections. In laser systems, coating absorption and laser-induced damage resistance may be important. In automotive and outdoor applications, coating adhesion and resistance to humidity, temperature variation, and cleaning agents may be emphasized.

10. Final Inspection and Packaging

Final inspection confirms that the finished prism meets the agreed dimensional, optical, cosmetic, and coating requirements. Depending on the product, inspection may include dimensional measurement, angle measurement, surface flatness, surface quality, transmission, reflectance, wavefront performance, coating verification, and cleanliness checks.

After inspection, the prism is packaged with suitable protective materials. Packaging must prevent surface contact, particle contamination, impact, and movement during transportation. Clear identification and traceability support efficient receiving inspection and production control at the customer’s facility.

Quality Management and Manufacturing Strengths

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. was established in 1998 and has developed long-term experience in the design and production of precision optical components. The company operates from a facility covering approximately 35,000 square meters and employs more than 300 people. This scale supports dedicated production, engineering, quality, and customer-service functions while maintaining the flexibility required for customized optical components.

HLL has obtained ISO 9001:2015 certification for quality management and ISO 14001:2015 certification for environmental management. It also holds IATF 16949 certification, which is particularly relevant to automotive supply chains requiring disciplined process control, traceability, risk management, and consistent production performance.

These certifications are valuable because optical prism quality depends on more than final inspection. A reliable quality system controls incoming materials, equipment maintenance, process parameters, operator training, nonconforming products, corrective actions, documentation, and traceability. By managing the entire production system, a manufacturer can reduce variation and improve delivery consistency.

As a recognized high-technology enterprise in Jiangsu Province, HLL has established the Jiangsu Precision Optical Lens Engineering Technology Center and the Jiangsu Enterprise Technology Research Center. These technical platforms support process development, optical component research, and the transformation of engineering concepts into stable manufacturing methods.

The company has obtained invention patents, utility model patents, and Jiangsu High and New Tech Product recognition for various technical achievements. Its investment in engineering and research allows it to address complex component requirements rather than relying only on standard catalog designs.

Advantages Compared with General-Purpose Suppliers

Integrated Technical Capability

A general-purpose glass processor may provide basic cutting and polishing, but complex optical prisms often require design interpretation, tolerance analysis, coating coordination, and application-specific testing. HLL’s technical background across several optical sectors provides a more integrated approach. The company can evaluate how the prism will function within a complete laser, imaging, automotive, or semiconductor system.

Experience with Multiple Industries

Different industries impose different priorities. Laser applications may emphasize wavefront quality, coating durability, and laser-induced damage resistance. Automotive optics may require compactness, environmental stability, high-volume consistency, and IATF-based process control. Semiconductor optics may demand extremely high cleanliness and dimensional repeatability. Consumer optics may prioritize visual quality, cost efficiency, and stable mass production.

Experience across these fields helps the manufacturer identify the relevant requirements and avoid applying a one-size-fits-all process to every prism.

Support for Customized Designs

Many optical prisms are not standard shapes. They may require unusual angles, special mounting features, customized coatings, or tight angular relationships. A supplier with engineering and process-development resources can help refine the design, recommend realistic tolerances, and create a repeatable production route.

Customization also includes packaging, inspection documentation, batch traceability, and delivery schedules. These supporting services can be decisive when the prism is integrated into a high-value instrument or an automated production line.

Stable Quality for Volume Production

Prototype performance is important, but production stability is equally important. A prism that performs well in a small sample may become difficult to control during larger-scale manufacturing if the process is not properly documented and monitored. HLL’s quality systems, technical centers, and manufacturing resources are intended to support both development orders and repeat production.

International Supply Experience

HLL exports optical components to more than 20 countries. International supply experience requires consistent documentation, packaging, communication, inspection support, and delivery coordination. This background can help overseas customers manage procurement and qualification processes more efficiently.

Applications of Optical Prisms

Laser Optics

In laser systems, prisms are used to fold beams, separate wavelengths, adjust beam paths, and support alignment. Their solid construction can provide better mechanical stability than adjustable optical mounts in certain configurations. High-quality surfaces and coatings are essential because scattering and absorption can reduce efficiency or create thermal problems.

Applications include laser marking, measurement, scanning, medical equipment, industrial alignment, scientific instruments, and optical communications. The exact prism design depends on wavelength, beam diameter, power, polarization, and incidence angle.

Automotive Optical Systems

Automotive optical modules use prisms for sensing, imaging, illumination, and compact beam routing. Advanced driver-assistance systems, cameras, lidar-related assemblies, head-up displays, interior sensing devices, and other vehicle technologies may require optical components that fit strict packaging and environmental requirements.

Automotive components must often withstand vibration, humidity, temperature variation, contamination, and long service periods. Consistent prism geometry, durable coatings, reliable edge treatment, and traceable manufacturing are therefore important. HLL’s IATF 16949 certification and automotive optics experience support the quality expectations associated with this sector.

Semiconductor Equipment

Semiconductor manufacturing and inspection equipment relies on precise optical paths. Prisms may be used in inspection modules, alignment systems, metrology tools, wafer-related equipment, and ultraviolet or visible illumination assemblies. These environments often require excellent cleanliness, repeatable angular accuracy, stable transmission, and carefully controlled materials.

In semiconductor applications, a small optical error can affect measurement accuracy or process yield. A prism manufacturer must therefore understand the importance of contamination control, documentation, and lot-to-lot consistency.

Imaging and Consumer Optics

Prisms are used in binoculars, microscopes, cameras, viewfinders, projectors, scanners, and compact imaging devices. They can invert images, fold optical paths, or reduce the physical length of an instrument. Surface quality, image contrast, phase behavior, and cosmetic appearance are especially important in viewing systems.

For consumer products, production efficiency and cost control must be balanced with optical performance. A capable supplier can optimize the process to achieve reliable high-volume output without compromising essential specifications.

Scientific and Measurement Instruments

Spectrometers, interferometers, surveying instruments, rangefinders, and laboratory systems use prisms to control and analyze light. These applications may require specialized dispersion, polarization behavior, angular accuracy, or spectral transmission. Close collaboration between the prism manufacturer and instrument designer can improve the final optical architecture.

How to Specify an Optical Prism

A complete prism specification should include more than length, width, and height. The customer should identify the prism type, optical material, wavelength range, clear aperture, prism angles, angular tolerances, surface flatness, surface quality, parallelism, perpendicularity, chamfer requirements, coating, and environmental conditions.

The intended optical function should also be stated. For example, “beam deviation of a defined angle at a specified wavelength” may be more useful than a general request for a wedge prism. Similarly, an imaging application may require transmitted wavefront data or image quality criteria in addition to cosmetic surface requirements.

Customers should describe whether the prism will operate in air, vacuum, oil, or another medium because the surrounding refractive index affects total internal reflection and beam behavior. Laser customers should provide power level, beam diameter, pulse characteristics, polarization, and expected exposure time when coating or damage resistance is relevant.

Mechanical information is equally useful. Mounting surfaces, adhesive areas, orientation marks, package limitations, and assembly forces can influence the prism design. Early communication of these conditions helps the manufacturer avoid unnecessary rework and improves the probability of a successful first article.

Inspection and Testing Considerations

Dimensional inspection verifies the external size and location of reference features. Optical angle inspection confirms the relationship between prism surfaces. Depending on the component, measurements may be performed with precision goniometers, optical autocollimators, interferometric methods, coordinate measurement systems, or other specialized equipment.

Surface flatness can be checked by interferometric techniques or suitable comparison methods. Surface quality is evaluated under controlled lighting and magnification according to the agreed standard. Coating performance may be verified through spectral measurement, reflectance testing, adhesion testing, abrasion testing, humidity testing, or temperature cycling.

For high-value or high-precision components, customers may request inspection reports, material certificates, coating data, lot traceability, and first-article inspection documentation. A professional supplier should be able to define which records are available and how measurement results are linked to each production batch.

Inspection equipment alone does not guarantee quality. Measurement uncertainty, calibration, operator training, fixture condition, and environmental stability all affect the reliability of test results. Strong optical manufacturers combine calibrated equipment with documented inspection procedures and experienced personnel.

Design and Procurement Recommendations

Balance Tolerance and Cost

Tighter tolerances can improve system performance, but they also increase processing difficulty, inspection time, and cost. Engineers should specify only the tolerances that are necessary for the optical function. A supplier with practical experience can help distinguish critical characteristics from noncritical dimensions.

Consider the Complete Optical Path

A prism should not be evaluated in isolation. Its effect depends on the source, lenses, mirrors, detectors, coatings, mounting structure, and surrounding medium. An optical simulation or tolerance analysis can identify which prism parameters have the greatest influence on system performance.

Define Clear Acceptance Standards

Terms such as “high quality,” “precision,” or “excellent finish” are not sufficient for production. Acceptance standards should define measurable values for angle, flatness, surface quality, coating performance, and appearance. Clear standards reduce misunderstandings between the customer and supplier.

Plan for Production Repeatability

If the prism will be used in a recurring product, the design should be evaluated for volume manufacturing from the beginning. Fixturing, polishing sequence, inspection method, coating capacity, cleaning, and packaging should all be considered. Early process planning can prevent a prototype from becoming difficult or expensive to reproduce.

Work with a Supplier That Understands Application Risks

The best supplier is not necessarily the one offering the lowest initial quotation. Optical quality, delivery reliability, technical communication, documentation, and corrective-action capability all influence the total cost of ownership. A manufacturer with experience in precision optics can often reduce hidden costs associated with rejected parts, assembly rework, calibration problems, and unstable supply.

Why Choose a Specialized Optical Prism Manufacturer

A specialized manufacturer understands that optical performance is created through a chain of controlled activities. Material quality, blank preparation, grinding, polishing, cleaning, coating, measurement, and packaging must work together. If one stage is weak, the final prism may not meet the requirements of the optical system.

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. combines more than two decades of manufacturing experience with technical development capabilities and broad industry knowledge. Its 35,000-square-meter facility, workforce of more than 300 employees, research centers, certifications, patents, and international customer base provide a foundation for dependable optical component production.

For customers requiring optical prisms, this combination offers several practical benefits: technical support during specification review, flexible production for customized geometries, process control for repeat orders, experience with demanding optical materials and coatings, and quality systems suited to international and automotive supply chains.

The company’s product focus includes precision components for laser, automotive, semiconductor, and consumer optical applications. This broad portfolio allows manufacturing knowledge from one sector to support innovation in another. For example, the cleanliness requirements learned in semiconductor optics can strengthen production for other sensitive components, while automotive process discipline can support repeatability in high-volume optical products.

Future Development of Optical Prism Technology

Optical systems are becoming smaller, more integrated, and more demanding. Automotive sensing, compact laser modules, portable instruments, augmented-reality devices, semiconductor inspection, and advanced imaging all require optical components that occupy less space while delivering higher performance.

These trends are increasing demand for custom prism geometries, thinner components, improved coatings, tighter angular control, and more sophisticated inspection. Manufacturers must continue improving polishing technology, process automation, digital traceability, optical measurement, and material expertise.

Environmental considerations are also becoming more important. Efficient material use, responsible chemical management, energy-conscious production, and environmental certification can influence supplier selection. ISO 14001:2015 certification demonstrates a structured approach to environmental management and supports the broader sustainability expectations of modern supply chains.

In the future, optical prism manufacturing will increasingly combine precision mechanical processing with data-driven process control. Measurement results can be used to adjust polishing parameters, identify process drift, and improve yield. At the same time, experienced engineers will remain essential for interpreting application requirements and developing practical solutions for unusual optical designs.

Frequently Asked Questions

What is the primary purpose of an optical prism?

An optical prism changes the path or behavior of light. It can deviate a beam, reflect light internally, invert or rotate an image, separate wavelengths, or combine several optical functions in a compact component.

How does an optical prism differ from an optical mirror?

A mirror generally redirects light from a coated reflective surface, while a prism redirects light through refraction or reflection at multiple internal surfaces. A prism can provide beam folding, image correction, or dispersion and may use total internal reflection instead of a metallic reflective coating.

Which materials are commonly used for optical prisms?

Optical glass is widely used, but fused silica and other specialized optical materials may be selected for ultraviolet transmission, high-power laser operation, thermal stability, or specific refractive and dispersion properties. Material choice depends on wavelength, power, environment, and optical design.

Can optical prisms be customized?

Yes. Prisms can be customized in shape, size, angle, clear aperture, chamfer design, coating, inspection standard, and packaging. Customization is often necessary when the prism must fit a compact optical module or perform a specific beam-management function.

What specifications should be provided when requesting a quotation?

Customers should provide a drawing or model, prism type, material, dimensions, angles, tolerances, wavelength range, coating requirements, surface flatness, surface quality, clear aperture, environmental conditions, quantity, and any required inspection documentation.

Why are prism angles so important?

Prism angles directly determine beam deviation, image orientation, and the relationship between optical surfaces. Even a small angular error can cause alignment problems or measurement errors in a precision optical system.

Are optical coatings always required?

No. Some prisms use total internal reflection and may not need a reflective coating. Transmitting surfaces often benefit from anti-reflection coatings, while other applications may require reflective, protective, or wavelength-specific coatings. The correct choice depends on the optical design.

What industries use precision optical prisms?

Precision prisms are used in laser systems, automotive sensing and imaging, semiconductor inspection and metrology, binoculars, microscopes, cameras, spectrometers, surveying instruments, medical devices, consumer optics, and scientific equipment.

How does manufacturing quality affect prism performance?

Grinding and polishing quality affects surface flatness, wavefront performance, and scattering. Angular accuracy affects beam direction and image alignment. Cleaning and coating quality affect transmission and durability. Consistent control of every process stage is therefore necessary.

What makes an optical prism supplier reliable?

A reliable supplier combines optical engineering knowledge, stable materials, controlled grinding and polishing, accurate inspection, coating capability, documented quality systems, traceability, appropriate packaging, and responsive technical communication. Certifications and experience in demanding industries provide additional confidence.

Does HLL support international customers?

Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. exports optical components to more than 20 countries. Its international supply experience supports communication, documentation, production coordination, and delivery for overseas customers.

What quality certifications does HLL hold?

HLL has obtained ISO 9001:2015, ISO 14001:2015, and IATF 16949 certifications. These certifications cover quality management, environmental management, and automotive-oriented quality requirements.

Conclusion

Optical prisms provide an efficient and reliable way to control light in compact, high-performance optical systems. Their ability to redirect beams, correct images, separate wavelengths, and combine multiple functions makes them valuable in laser equipment, automotive optics, semiconductor tools, imaging devices, and scientific instruments.

The performance of a prism depends on far more than its nominal shape. Material selection, angular accuracy, surface flatness, surface quality, polishing technique, coating performance, cleanliness, and inspection must all be controlled. For this reason, customers benefit from working with a manufacturer that combines optical engineering, precision processing, advanced quality management, and industry-specific experience.

With a history dating back to 1998, a substantial manufacturing facility, more than 300 employees, dedicated engineering technology centers, international supply experience, and certifications including ISO 9001:2015, ISO 14001:2015, and IATF 16949, Changzhou Haolilai Photo-Electricity Scientific and Technical Co., Ltd. is positioned to support both customized optical prism development and repeat production. Its capabilities in laser optics, automotive optics, semiconductor optics, and consumer optics make it a suitable partner for customers seeking dependable precision optical components.

When selecting an optical prism, the most effective approach is to define the optical function clearly, match the material and coating to the operating conditions, establish measurable acceptance criteria, and evaluate the supplier’s complete manufacturing and quality system. A well-designed and carefully manufactured prism can improve system compactness, stability, efficiency, and long-term performance.

References

1. Optical Society of America, Handbook of Optics: Geometrical and Physical Optics.

2. Eugene Hecht, Optics.

3. Warren J. Smith, Modern Optical Engineering.

4. International Organization for Standardization, ISO 9001:2015 Quality Management Systems.

5. International Organization for Standardization, ISO 14001:2015 Environmental Management Systems.

6. International Automotive Task Force, IATF 16949 Quality Management System Requirements for Automotive Production and Relevant Service Parts Organizations.

7. International Organization for Standardization, ISO 10110 Optical Elements and Systems — Preparation of Drawings for Optical Elements and Systems.

8. International Organization for Standardization, ISO 9211 Optics and Photonics — Optical Coatings.
